Fiberscopenet - Ultra Fine Micro Borescope

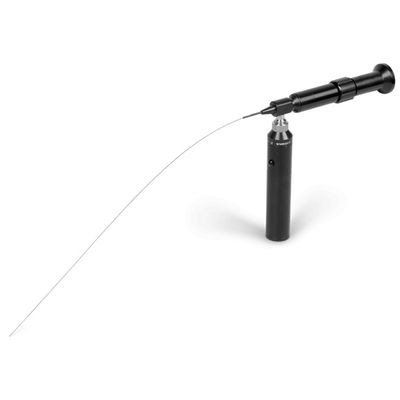

The UF Micro Borescopes are manufactured in the US, using densely-packed Japanese quartz fibres to compose the image bundle. They represent a premium line of super-thin flexible fiberscopes designed to access extremely small inspection areas, with diameters starting at just 0.37mm (0.0146").
- Ultra Small Diameter Borescope
- Diameters start as small as 0.37mm (0.014")
- Custom probe lengths
- Optical fiber image transmission
Ultra Fine Micro Borescope represent our PRO line of small diameter Fiberscopes. They are the best choice for extremely small inspection areas, e.g. cooling holes inside turbine blades, aircraft, marine, locksmiths, and micro-manufactured parts with diameters as small as 0.37mm (0.0146").
All of the optics are tested, adjusted and assembled in the USA to ensure the highest image quality. These advanced image bundles are composed of Fujikura microscopic quartz fibers. These Japanese fibers are small enough to provide a brilliant, high resolution image, which is not so small as to leak light or resolution. The bundle density is 3,000 fibers in 0.37mm diameter, 3,000 fibres in the 0.5mm diameter, and 10,000 fibres in the 0.75mm diameter. The minimum bend radius with the 0.5mm borescope will be 20mm, so it can make tight bends.
The UF Micro Borescopes come in diameters of 0.37mm (0.0146"), 0.5mm (0.0197") or 0.75mm (0.295"), and field of views of 60 and 70 degrees, respectively. But we can customize these and offer larger diameters and longer probes.
The UF Micro Borescopes` image bundle utilizes the highest quality Fujikura quartz fibres to obtain the best image possible for these micro diameters. They are covered with a waterproof black polyimide sheath to protect the optics and the fiber light cables which illuminate the inspection area from the tip of the scope. The minimum bend radius with the 0.5mm Fiberscope will be less than 20mm, so they can make fairly tight bends.
Full Specifications
- Working Length: 305mm (12") / 610mm (24") / Custom Lengths Available
- Diameter: 0.37mm (0.0146") / 0.5mm (0.0197") / 0.75mm (0.0295")
- Resolution: 3000pix / 6000pix / 10,000pix
- No articulation
- Coated flexible insertion tube
- Field of View (FOV): 60° / 70°
- Direction of view (DOV): 0°
- Focal Range: 3mm - 25mm / 1mm-20mm / 3mm-50mm

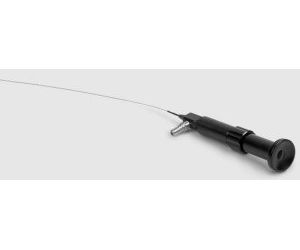

The eyepiece on the UF Micro Fiberscopes is focusable coupler, meaning the image through the scope can be manually focused to better see the inspection area close up or further away. The focusable eyepiece is also removable, if the fiber optic image bundle is damaged this part can be replaced, instead of the entire scope, making repairs far easier and cheaper
Full Specifications
- Focus ring on the eyepiece
- Light post connection: STORZ, WOLF, and STORZ Adapter Thread
- 32mm standard eyepiece
- Micro Borescope
- Light post adapter
