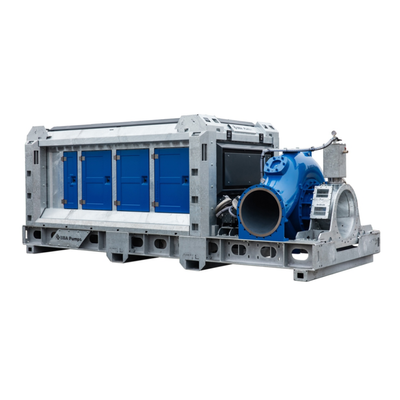

BBA Pumps - Model BA700G D810 Diesel Driven -Ultra High Flow Mobile Dewatering Pump

• Exterior dimensions make it suitable for transport in a 20 ft. container
• Available with different engines to comply with emission standards worldwide
• Minimal noise emissions for trouble-free use in densely populated areas
• 4 years BBA Pumps limited warranty

Centrifugal Pump
The BA700G is a 28-inch BBA Pumps centrifugal pump with an axial flow impeller. The large free passage is unparalleled at 145 mm, making this a real dewatering pump. Best-in-class pump efficiency and an excellent NPSH curve lead to an ultra-performing unit. Other standard features are large inspection covers, suction and pressure gauges and a heavy duty bearing frame with an extra oil chamber for dry running.

Priming System
Featuring a fully automatic priming system, the BA series pumps quickly prime and re-prime, even from dry conditions. A genuine BBA Pumps priming system includes a diaphragm vacuum pump, a check valve on the discharge side and a float box for air-water separation on the suction side.

Diesel Engine
The pump is driven by a clean and economical Volvo Penta diesel engine. The electronically controlled variable speed engine meets the stage V emission requirements. Low fuel consumption and minimal noise emissions are key features of this engine.

Sound Attenuated Canopy
BBA Pumps canopies are known as the most innovative and robust in the world. Pumps in sound attenuated canopies are super quiet, safe to use and protected against the elements. The fully self-contained unit features a composite fuel tank and fluid containment system. To aid mobility, the forklift pockets and lifting eyes are fitted as standard. Exterior dimensions of the canopy make it suitable for transport in a 20 ft. container.

• Discharge x Suction: 28" x 32"
• Max. flow: 7800 m³/h
• Max. head: 23 mwc
• Free passage: 145 mm
• Priming system: MP100 (100 m³/h)
• Engine: Volvo Penta
• Max. speed: 590 rpm
• Fuel consumption at BEP: 90 l/h
• Canopy: EL23-58
• Sound level: 75 dB at 10 m
• Dimensions L x W x H: 5830 x 2306 x 2300 mm
• Dry weight: 12000 kg
• Warranty: 4 years

BA auto prime pump

The BA range of pumps has been designed with a clear focus on reliability, efficiency and durability. Featuring a 100% mechanical priming system, the BA series pumps quickly prime and re-prime, even from dry conditions. The heavy build style of both pump and canopy make the BA range perfect for use in the strenuous contractor market.

World-class performance

The BA range is built to be deployed on the most demanding dewatering and sewage bypassing applications. Using high efficiency pumps and state-of-the-art diesel engines, the pumps offer maximum performance at minimal cost, fully in-sync with the company philosophy of “Lowest cost of ownership”.

Sustainability

• High efficiency pumps minimising fuel consumption
• Emissions in accordance with EU Stage & US EPA Tier regulations
• Corrosion free hot dip galvanised canopy
• Corrosion free composite door panels and powder coated plating
• 100% Oil-spill free priming system
• Fully bunded unit eliminating fuel/oil spills at all times

Complete package designed & built by BBA Pumps

• Complete in-house design & production
• Over 60 years of experience in the market
• Complete testing facility in-house
• Contemporary & functional design
• Durable & eco-friendly materials
• Custom builds available

After sales service & product support

• Single supplier for parts, spares & accessories
• Dedicated customer help-desk (24h service)
• Dedicated service department in-house
• Global parts distribution network
• Optional global on-site servicing available
• Extensive training options available (technical & commercial), on-site or in-house

BBA auto prime pump

• Pump type: BA700G D810
• Max. flow: 7800 m3/hour (34300 US GPM)
• Max. head: 23 mwc (76 feet)
• Impeller type: Axial flow impeller
• Solids handling: 145 mm (5.7 inch)
• Best efficiency point: 85%
• Pump casing: Cast iron GG20
• Impeller: Ductile iron GGG40
• Pump shaft. 42CrV6
• Shaft seal: Mechanical seal

BBA priming system

• Pump type: BBA MP100 Diaphragm pump
• Air handling capacity: 100 m3/h (59 CFM)
• Max. vacuum: 8.5 m (29 inHg)
• Drive: E-motor 24V
• Float box: St 37 hot dip galv.
• Float: Stainless steel 304
• Start/stop: Fully automatic

Engine

• Engine brand: Volvo Penta
• Engine type: TAD1374VE
• Flywheel power: 375 kW (510 Hp)
• Engine speed: 1500 RPM
• Rating: IFN power
• Fuel consumption: 200 g/kWh
• Governor type: Electronic
• Displacement: 12.78 l
• Number of cylinders: 6
• Aftertreatment: SCR, AdBlue®
• Exhaust level: Stage IV – Tier 4 Final

BBA control panel LC30

• Auto start/stop system
• Two float switches included (10 m cable)
• Switch Manual-0-Auto
• Rpm. control with push buttons
• Warning lights
• The 4.3" LCD monitor displays additional engine data, e.g. actual engine speed, working hours, battery voltage, fuel consumption and failures in clear text (10 language support)

BBA non return valve 800 mm (shipped loose)

• Flange size entrance: DN700 PN6 – K810
• Flange size delivery: DN800 PN6 – K920
• Casing: St 37 hot dip galvanised
• Lifting point: Fitted with 4 lifting points
• Max Pressure. 3.5 bar – 50 PSI

CANOPY EL23-58

BBA sound attenuating canopy

• Canopy type: EL23-58
• Dimensions L x W x H: 5830 x 2306 x 2300 mm
• Dimensions L x W x H: 229 x 90.8 x 90.5 inch
• Basic frame: Hot dip galvanised
• Doors: 8 Easy-access doors (lockable)
• Door panels: ABS/ASA
• Fuel tank: PE net 300 ltr. (80 US Gallon)
• Fuel tank autonomy: 3 hours (at 1500 rpm BEP)
• Fuel tank cap: 60 mm (2.5 inch)
• AdBlue® tank: PE net 300 ltr.(80 US Gallon)
• Forklift pockets. Fitted with 2 forklift pockets
• Lifting point: Fitted with 4 lifting points
• Oil drain pump: Drain pump for motor oil installed (hand pump)
• Connections: Please consult “auxiliary items”
• Exhaust system: Aftertreatment fully integrated in the canopy
• Emergency stop: Applicable
• Additional: Fitted with oil-water separator
• Documentation: User manual & BBA warranty book
