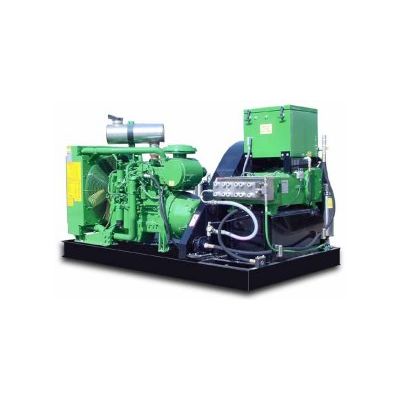

NLB Ultra-Clean 40 - Model 35220D/40220D -Ultra-High Pressure Water Jetting System

With pressures up to 40,000 psi (2,800 bar) and a flow rate of 10 gpm (38 lpm), the Ultra-Clean has the flexibility to perform a wide variety of water jetting applications, and allows for dual operator capability. Several of most common applications include surface preparation, coating removal, and cutting. Since the unit`s power comes from a slow-running triplex plunger pump, wear and maintenance are minimized. You save money on parts and have more uptime in the field.

• The slow running plunger pump is built from high-grade stainless steel and provides unprecedented reliability.
• Compact-skid design.
• Pump can be converted to operate at pressures of 10,000 or 20,000 psi.
• Optional on-board air compressor to power multiple accessories.
• A remote accessory manifold includes pressure gauge, rupture disc and by-pass valve.

A six cylinder diesel CAT 3126B engine rated for 275 HP (205 kw) on a continuous duty basis. It includes a heavy duty clutch power take off, 12 volt electric start, fully shrouded engine (optional), exhaust muffler and battery.

• Dual axle design
• 16.5" wheels (419 mm)
• D.O.T. lighting package
• Heavy-duty gusseted fenders
• Electric brakes
• Acrylic enamel paint

• Size: 74" Wide (1.88 m) x 130" Long (3.3 m) x 70" High (1.78m)
• Weight 6,500 lbs. (2,951 kg)

• Slow running NLB Model 36200 pump
• Belt drive with guard (optional gear pac)
• 68 Gallon (257 l ) fuel tank
• 60 Gallon (225 l ) stainless steel water tank
• Dual water inlet filters (10 and 6 micron absolute)
• Three plunger positive lubrication
• All necessary plumbing and operating controls
• Pressure adjusting by-pass valve
• Optional on-board compressed air - 50 cfm (24.5 l/sec) or 100 cfm (49.5 l/sec).
• Oil filled pressure gauge and rupture disc assembly
