Ultra-High-Pressure Foam Fire fighting Units
CAT PUMPS offers a variety of ultra-high-pressure, low flow, portable foam fire fighting units for effective control of wildland brush and grass fires. These ultra-high-pressure, foam fire fighting units are lightweight and extremely dependable. They conserve water and permit the fire fighters easy access to remote wildland fire fighting areas. Our low-flow, ultra-high-pressure, foam fire fighting units allow the fire fighters to stay on the fire line longer for more effective control of wildland grass and brush fires. The adjustable foam injection system delivers precise metered foam, is easy to use and very economical. Our compact design permits these skid-mounted, ultra-high-pressure, portable foam fire fighting units to be mounted onto an ATV, pick up truck or UTV all terrain utility vehicles.
Key features of our portable wildland firefighting units include:
- low water consumption
- fast knockdown
- long reach minimizes heat affect
- 20 minute ¼ drain time
- 3.5:1 quality foam expansion ratio
- high pressure aids control of underground burn
- 45 foot reach and wide angle foam gun
- 4-18 HP custom units
Quality foam aspiration with zero degree nozzle for distance and 10 degree nozzle for wide coverage.
We have been field testing the CAT PUMPSc in our Ranger Wildland Firefighting units for the past two years and are very impressed with the performance. These units are portable, provide excellent water conservation and help reduce the stress on the firefighter.
CAT PUMPS portable foam firefighting systems are designed for effective and efficient fire control. Units feature an adjustable foam injection system that combines precise metered foam with high-pressure spray.
The compact design permits these portable foam firefighting systems to be mounted onto ATVs, UTVs, pickup trucks, trailers or other response vehicles. These units provide low water consumption, fast knockdown, and flexibility close to the fire.

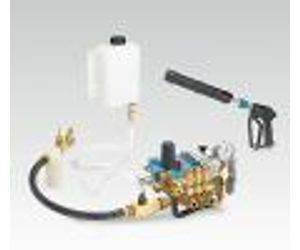

5.5 HP Gas Engine System
Model: 3CP1120GFM.055
3.5 GPM at 1500 PSI
Lightweight package for ATV type of firefighting vehicles

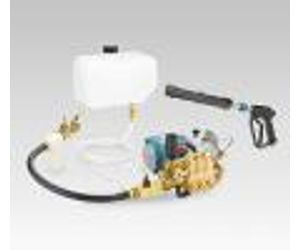

8 HP Gas Engine System
Model: 5CP6120G1FM.130
6.7 GPM at 1200 PSI
Designed for slip on pickup truck firefighting vehicles
13 HP Gas Engine System
Model: 56G1FM.150
8 GPM at 1400 PSI
For larger wildland fire vehicles
Ultra High Pressure foam firefighting systems by CAT PUMPS combine the most dependable pump in the market with foam induction technology to give you the best quick-response technology.

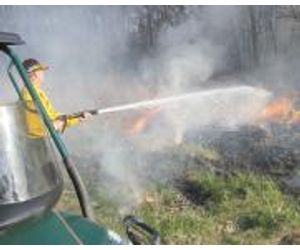

Quick Fire Knockdown
High pressure, low flow pumps deliver a precise metered foam and water up to 45 feet for quick fire suppression. Foam injection can be adjusted from 0.5% up to 6% to meet fire fighting requirements. Low flow pumps provide increased time at the fire line, even with a limited supply of water. High pressure spray penetrates deep into roots for effective fire breaks and increased protection against rekindling.

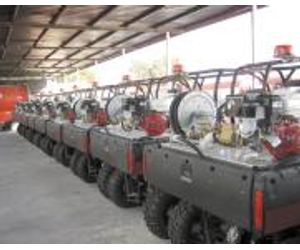

Rugged and Portable

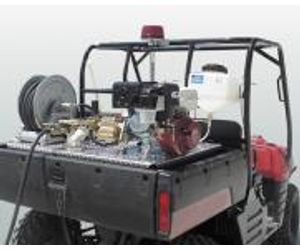

Lightweight, heavy-duty firefighting systems can be installed conveniently on ATV, UTV, pickups, trailers, or other first response vehicles providing you with access to the fire fast. Low flow systems give you more time and flexibility at the fire line.
Specially Designed Twin-Foam Gun
The Twin-Foam Gun has two application modes: straight or wide. The straight stream delivers the water and foam mixture up to 45 feet (13 meters) and atomizes the spray for excellent coverage. The wide angle stream delivers foam with a higher expansion rate up to 20 feet (6 meters) for extended coverage.
High Pressure Pump

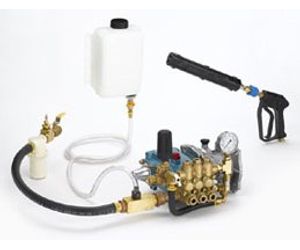

CAT PUMPS heavy-duty, industrial triplex pumps are known as the most dependable pump in the industry. All systems include pressure gauge, unloader, safety relief valve, thermal valve, inline filter, freeze protection, and twin-foam gun.
Foam Injection
Foam injection is variable from shutoff up to 6% and can be adjusted on site.
Drive Package
Firefighting packages come equipped with gearboxes ready to mount to the engine of your choice. Honda and Briggs & Stratton are available as a complete package. Diesel, electric, and hydraulic drive packages are also available upon users request.
Optional Hose and Reel
Hose reels are available in manual or electric rewind with 100 to 200 feet of fire resistant, high pressure hose.
Cat Pumps offers cost-effective solutions for your high pressure liquid pumping applications. Our product line has responded to market needs and environmental concerns. We have developed high pressure pumps with state-of-the art designs and features, such as our flushed manifolds for high temperature liquids, low lubricity liquids and high vapor liquids like CO2. Our triplex PD pump design provides high energy-efficiency, long life, low maintenance and low life-time operating costs.
Companies from all industries and markets have incorporated Cat Pumps` custom pumping systems into their operations to save money, reduce downtime, improve production, enhance product quality or ensure a safe environment. Whatever the application, we can help you find a dependable solution.
Cat Pumps are active in all commercial and industrial, civilian, military and government markets for transfer and high pressure liquid pumping applications whether pumping fresh water, DI water, wastewater, seawater, oils, chemicals, foam, liquid CO2, sanitizers, pesticides, chamicals or food products.
