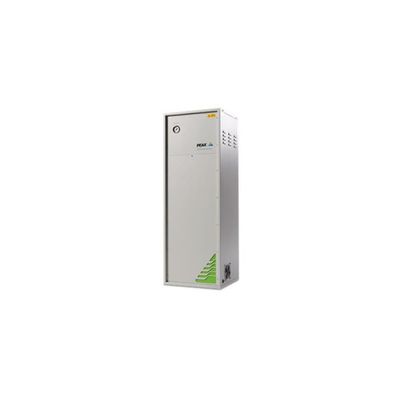

Peak Scientific - Model NG3000 -Ultra High Purity Nitrogen Gas Generator
The NG3000 delivers ultra high purity nitrogen at flows of up to 3 L/min for GC, DSC and DMA applications, as well as other laboratory applications requiring up to 3 L/min of ultra high purity nitrogen. The NG series can be supported by in-house air or supplied with an integrated compressor. To reach their ultra high purity nitrogen output these generators use Pressure Swing Adsorption and a Carbon Molecular Sieve. These separation technologies remove oxygen and other impurities in air, delivering hassle-free, ultra high purity nitrogen, on-demand for the lab.
Most popular related searches
ultra high-purity nitrogen
ultra high-purity nitrogen generator
high-purity nitrogen generator
carbon molecular sieve
nitrogen generator
molecular sieve
laboratory gas
- Suitable for applications such as GC, DSC, DMA
- Suitable for applications requiring ultra high purity
- Available with or without an external compressor
- Contains self-regenerating Carbon Molecular Sieve column
- Gas is supplied on demand so generator works to your schedule
- 12 month comprehensive on-site warranty
Gas
- Gas Type: Nitrogen
- Min Gas Flow: 0
- Max Gas Flow: 3
- Max Output Pressure: 80psi/5.5bar
Site & installation
- Min Inlet Pressure: 120psi/8.3bar
- Max Inlet Pressure: 130psi/9bar
- Voltage: 110 / 230 ± 10% VAC
- Frequency: 50 / 60 Hz
- Current: 0.5 Amps / 1.2 Amps
- Max Operating Temp: 25°C / 77°F
- Accreditations: CE
Dimensions & weight
- Size (HxWxD) mm: 1260 x 430 x 410 mm
- Size (HxWxD) Inches: 49.6 x 16.9 x 16.1 inches
- Generator Weight: 77kg / 169.4lbs
