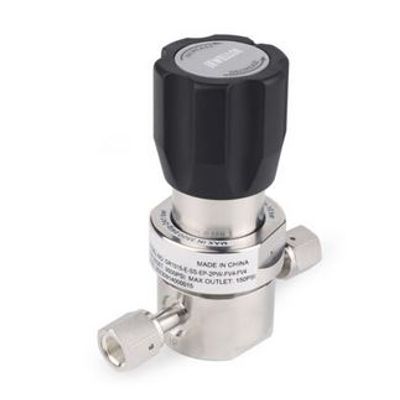

Jewellok - Model JR1000 - UHP Series -Ultra High Purity Single Stage Pressure Reducing Regulator
Single Stage Regulator, Low to intermediate flow. Body material: SS 316L, SS 316L VAR. Metal to metal diaphragm sealing. Internal electrolytic polishing, with a smoothness of up to Ra 5 μin.
Most popular related searches
- The internal volume is small.
- The import pressure can reach 3500psig.
- Flow coefficient Cv: 0.09 and 0.15.
- Maximum flow rate, standard: 30 SLPM, high flow HF: 120 SLPM.
- High cleanliness assembly and packaging are suitable for the the high-purity semiconductor industry.
- Every product undergoes helium testing before leaving the factory.
