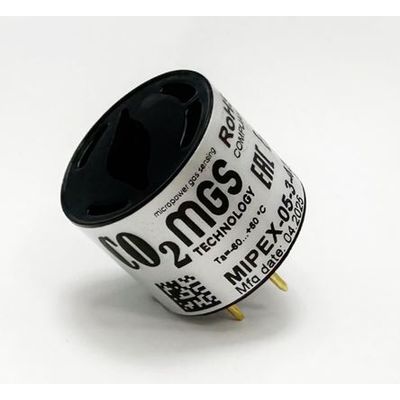

MGS Technology - Model MIPEX-05 [CO2] -Ultra-Low Power NDIR CO2 Gas Sensor

The MIPEX-05 CO2 sensor is engineered for precise and efficient carbon dioxide detection, utilizing advanced non-dispersive infrared (NDIR) technology. With its ultra-low power consumption, averaging below 0.2 mW, it is exceptionally suited for portable and wireless gas monitoring applications. The sensor is designed to detect CO2 concentrations between 0-5% and 0-10% volume efficiently, operating reliably from temperatures as low as -40°C to as high as 60°C. This NDIR gas sensor features an integrated microcontroller within a standard 4th series housing made from durable Polycarbonate Lexan™, measuring Ø20.1 × 16.6 mm. It offers flexible data interfacing through UART digital output with ingress protection ratings ranging from IP20 to IP54, depending on the filter used, ensuring resilience in varied environmental conditions. Its explosion-proof design underscores its suitability for challenging industrial environments where safety is paramount.
