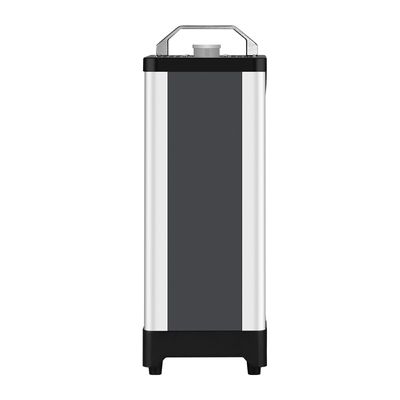

D-MEI - Model DY-GTL-D -Ultra-low Temperature Dry Block Temperature Calibrator (-100℃~+40℃)
The Low Temperature Dry Block Temperature Calibrator designed by Taian Demei Electromechanical Equipment Co., Ltd. is engineered for precise temperature calibration in laboratory settings. Operating in a temperature range from -100°C to +40°C, it provides a robust solution for calibrating a range of temperature-sensitive devices. The calibrator boasts advanced features that ensure consistent temperature distribution and stability across the unit. With its ultra-low temperature capabilities, it's particularly suitable for applications requiring stringent temperature accuracy. The design incorporates a high precision control system to maintain temperature accuracy, making it essential for facilities requiring reliable calibration of their equipment. Ideal for professionals working in calibration laboratories, testing institutions, and manufacturing sites with specific temperature regulation needs.
Dry block temperature calibrator offer accuracy, portability, and speed for nearly all field calibration applications. These units are packed with func- tionality and are remarkably easy to use. Dry block temperature calibrators are light weight, small, and quick to reach temperature set points, yet also stable, uniform, and precise.
Typical applications of temperature calibrator:
- Loop calibration of temperature transmitters
- Thermocouple calibration or verification
- Calibrations of RTDs or PRTs
- Testing of thermostatic switches
- Verification of industrial thermometers
Each unit includes: Accredited report of calibration, insert, insert removal tool, power cord, user manual.
Recommended accessories: carrying case, reference temperature sensor
- Ultra-low temperature (-80℃) temperature range, widely used in astronomical observation, medical and pharmaceutical, aerospace, science and technology research and development and other fields.
- Small volume and high precision.
- Human-machine interface, English display, touch operation, beautiful and generous.
- One-key temperature setting, easy operation, automatic adjustment of heating power,rapid temperature heating and temperature control.
- Model : DY-GTL-D
- Temperature range : -100℃~+40℃
- Display resolution : 0.1℃/0.01℃ (customizable)
- Accuracy : ±0.5℃
- Control Mode Touch Screen
- Check hole depth : 145mm
- Default display : Chinese display full color LCD ℃ or ℉
- Diameter of soaking block : 30mm
- Calibration hole diameter : Standard:4mm, 6mm, 8mm, 10mm (customizable)
- Dimensions (length *width* height) : 320mm*195mm*530mm
- Weight : 12 kg
- Power Supply : 220VAC 50/60Hz
- Power : 800 w
- Language : English
- Working Conditions : 22±3℃,15%RH-80%RH
- Standard Accessories : Power line*1,Manual*1,Certificate*1
