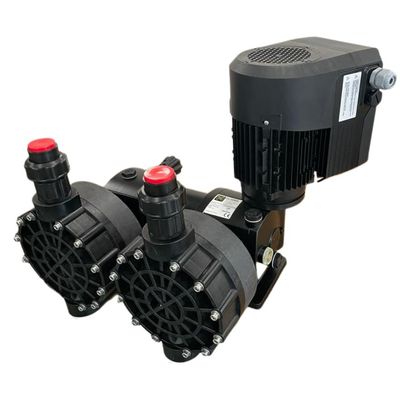

FG Pumps - Model Series Ultra -Ultra Metering Pumps for Agriculture Chemicals
FGM ULTRA is the true answer to all the requirements of a precise dosage and To install. FGM ULTRA is present in all applications where dosing is required accurate and repeatable in time. Mainly in water treatment, where it exists the need to dose with remote control, but above all in production lines (for example, in paper mills), where the repeatability is necessary for the correct development of the final product.
With FGM ULTRA, the final dosage will always have the same characteristics as any variation of the frequency of the motor (therefore, the input signal) combined with any To install pressure of work.
Thanks to the special high performance motor integrated with a high quality variator, the The outputs will always be the same from 100% to 0% of the motor frequency or rpm.
But the advantages do not end here, in fact, in comparison with many competitors, FGM ULTRA can operate below 20 - 25% of the frequency without overheating loss of torque power.
At the minimum revolutions of the motor, even at the maximum pressures, the motor always will provide 100% of the torque.
IP55 for the motor, IP66 for the variator, ULTRA has input and solid analog-digital, relays of Output, communication ModBus.
ULTRA is suitable for all types of bombs and with diaphragms of 80 and 110 mm before use of aluminum bomb body.
The FGM ULTRA pump is the real answer to all the requests of a precise and always perfect dosage.
The FGM ULTRA is indicated in all those applications where a precise and repeatable dosage over time is needed. Mainly in water treatment, where there is the need to dose with remote control, but above all in production lines (for example in paper mills), where repeatability is necessary for the correct development of the final product.
With FGM ULTRA the final dosage will always have the same features at any variation of motor frequency (therefore input signals) combined with any working pressure.
Thanks to the special high performances motor integrated with an high quality inverter, the performances will be always the same from 100% to 0% of frequency of the motor or rpm.
But the advantages do not end here, in fact compared to many competitors, the Ultra FGM can work below 20-25% of the frequency without overheating or without loss of torque power.
At the minimum motor s rpm, even the maximum pressures, the engine will always provide 100% of the torque.

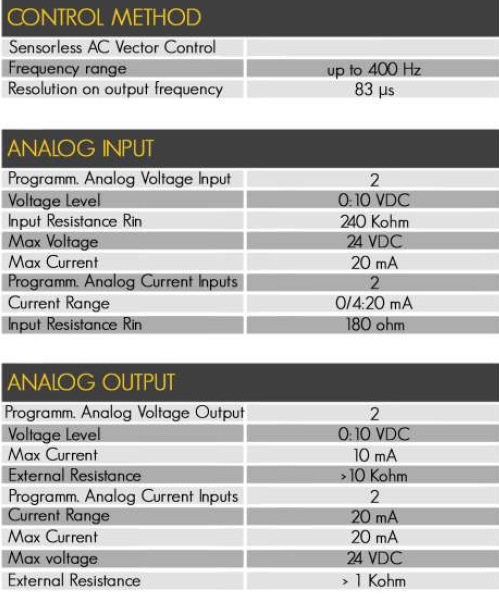

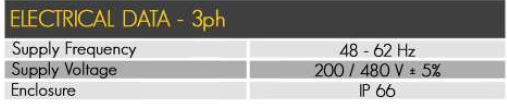

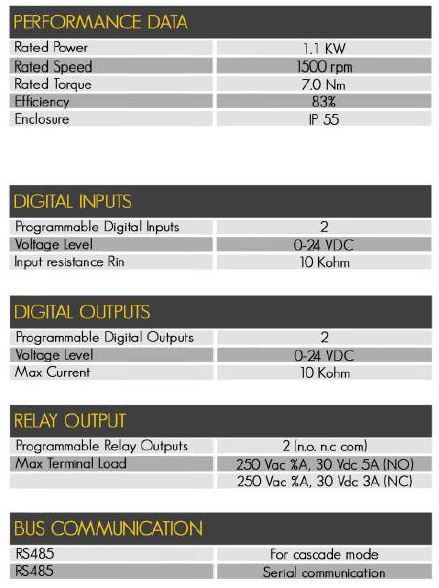

IP55 for the motor, IP66 for the drive, ULTRA has analog-digital input, analog-digital output, output relay, ModBus communication.
ULTRA is suitable for all pump types and with 80 and 110 mm diaphragm size will be foreseen the aluminum pump body use.
