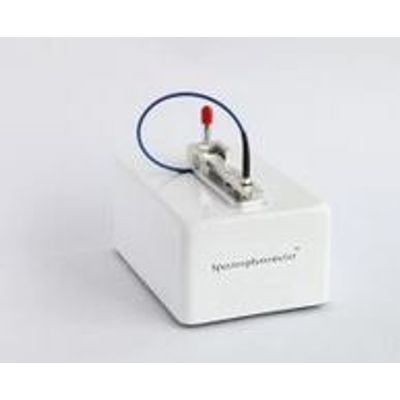

Onlab - Ultra Micro Spectrophotometer
It is full wavelength, ultra micro spectrophotometer, can be used for measurement of nucleic acids, proteins, cells, microarray sample and regular full wavelength scanning, mainly used in the field of biology, medicine, pharmacy, microorganisms. It has high accuracy, fast measuring speed, small size and other excellent characteristics.
Most popular related searches
nucleic acid monitoring
nucleic acid
spectrophotometer
nucleic acid concentration
nucleic acid sample
drilling laser
protein sampling
protein sample
microarray
- Surface tension technology, auto adjusting optical path
- 0.2-2uL sample volume, no need to dilute or measure container
- Small volume, portable equipment, optional power supply module to meet site analysis and measurement in wild
- For unknown sample, it shows automatically results of full wavelength scanning
- Easy to use, 1 sample, 3-5 seconds for full range scanning( regular mode), 1 second( quick mode).
- Connected with computer through USB interface, no need power supply switching, without warming.
- Advanced system Structure
- Light source: original American imported xenon lamp (full spectrum, no need warming, 100millions long life)
- Light path: quartz fiber stainless steel package, 100um laser drilling, precision of 1um.
- Optical splitter: diffraction grating (no rotating, no mechanical motion error,wavelength stabilization, excellent reproducibility)
- Detector: 2048/3648 column pixel CCD (equivalent to 2048/3648 detectors for simultaneously measuring)
- Easy to operate, many analysis module designed to meet kinds of filed.
- Measuring concentration of A260 nm nucleic acids
- Measuring concentration of protein
- OD600 measuring concentration of cells and bacterium
- convenient data management mode. Each user account and password can be set for individual use, also can use the default public accounts.
- live image storage format and form, form a compatible Excel, facilitate the follow-up data processing, and can generate Word analysis report.
- have diagnostic state instrument working module, abnormal automatic jump out of a message, and guide to solve common problems.
