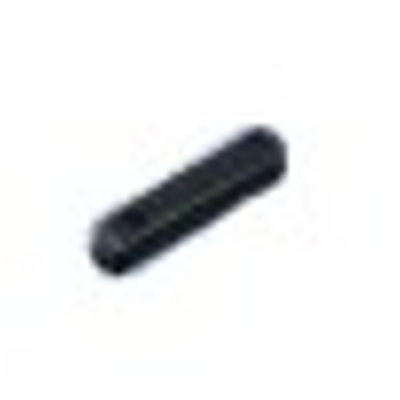

Euroquartz - Model AG SMD -Ultra Miniature Crystal
FromEuroquartz Ltd
AG crystals are ultra-miniature SMD components specifically designed to provide 32.768kHz for real-time clocks. Their ultra-small size and rugged construction make them suitable for a wide range of applications including battery powered, hand-held equipment and any application requiring miniaturization.
Most popular related searches
- Frequency 32.7680kHz (also 75kHz)
- Ultra-miniature size 7.0 x 1.5 x 1.4mm SMD
- Low mass and rugged construction
- Supplied taped and reeled
- Suitable for a wide range of real-time clock applications
- Nominal Frequency: 32.7680kHz and 75.0kHz
- Calibration Tolerance: ±20ppm of ±50ppm (standard)
- Load Capacitance: 12.5pF standard or 7pF
- Equivalent Series Resistance 32.768kHz: 65kΩ maximum 75.0kHz: 30kΩ maximum
- Drive Level: 1.0µW max, 0.5µW operating
- Parabolic Coefficient: -0.04ppm/°C2 maximum
- Peak Temperature: +25°C
- Shunt Capacitance (C0): 0.8pF typical
- Motional Capacitance (C1): 1.9fF typical
- Ageing: ±3ppm /year max. at +25°C
- Insulation Resistance: 500MΩ min. @100VDC
- Crystal Cut: X-Cut
- Operating Temperature Range: -40° to +85°C
- Storage Temperature Range: -55°C to +125°C
- Reflow Soldering: 10s max. @+260°C twice or <230°C for 3 minutes
- RoHS Status: RoHS Compliant, pB free.
- Packaging: 16mm EIA tape and reel 3000 pieces per reel
