Ultraaqua - Model SS Series -Horizontal Open Channel UV Disinfection Systems

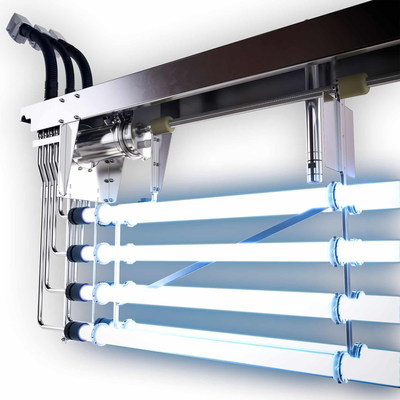

Designed for optimal hydraulic performance, the horizontal configuration allows for uniform water flow, minimized head loss, and consistent UV dose distribution, ensuring high disinfection performance across various operating conditions. The modular design makes it easily scalable, capable of treating flows of virtually any size, and ideal for new installations or retrofitting into existing treatment infrastructure.

The automated ULTRAWIPER™ technology keeps quartz sleeves clean with tailored brush heads, maintaining operational efficiency and reducing the need for manual intervention.

For sites with specific constraints, the open channel system is also available in vertical and inclined configurations, offering additional installation flexibility.

• Third-party validated disinfection performance in compliance with USEPA & NWRI
• Maximized design versatility – customizable for virtually any channel dimension
• Minimized space requirements for easy integration in complex environments
• Guaranteed 16 000-hour ULTRATHERM lamp lifetime with CFD optimized cross-line lamp arrangement
• Consistent performance through automated ULTRAWIPER™ quartz sleeve wiping technology
• Streamlined maintenance including easy top-compartment access
• Advanced control cabinet providing UV dose, UVT, flow and power level parameters
• Optional environment control equipment – Water level sensors, weir gates and penstocks

System Characteristics

• LAMP CONFIGURATION: Horizontal
• Material: Passivated and Pickled 316L, Super Duplex
• CONFIGURATION: Modular
• Pressure rating: Gravitational
• Flowrates: 5 m3/h (22 GPM) – 24.000 m3/h (150 MGD)
• UV transmission (UVT%): 20 – 100%
• Lamp type: ULTRATHERM Low-pressure High Output (LPHO)
• Lamp lifetime: Guaranteed 16.000 hours

Control cabinet characteristics

• Enclosure material: Painted steel, SS304, SS316L, GFRP
• UV intensity sensor: ÖNORM M 5873-1 certified, PTFE
• Sleeve wiping: Automatic ULTRAWIPER™
• SCADA connection: Profibus, Profinet, MODBUS TCP/IP
• Enclosure rating: IP54, IP65 (NEMA3/4X)
• Lamp driver type: Electronic variable output
• System voltage: 1x230V, 3x400V+N+Pe +/- 10%, 47-63Hz (other optional)
• UV dose pacing: Standard
