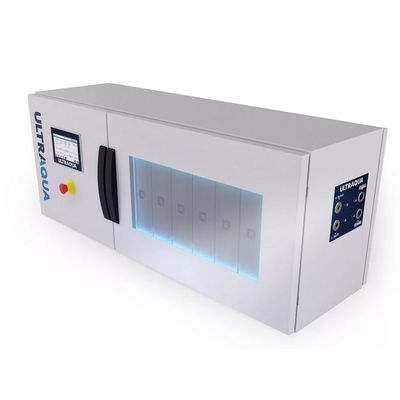

Ultraaqua - Model ULTRAQUBE GFRP (1-5) Series -Ozone System

SHARE

The ULTRAQUBE is the only ozone system in the world that is specifically engineered for the aquaculture industry. It features energy-efficient high-concentration ozone technology, designed as a scalable concept that fits customization over time to suit the exact requirements.

Most popular related searches
ozone system
ozonation
ozone concentration
cooling water
ozone generator
safety product
cooling system
integrity monitoring
ozone disinfection
compaction system

The ULTRAQUBE™ is scalable with an integrated inverter that produces 88 grams of ozone per hour. If the demand increases, additional modules can be integrated to meet the requirements. For higher ozone output requirements, see our high-capacity version ULTRAQUBE™ 6-18 (GFRP) Series.

The high component quality ensures robustness and durability to stand the test of time, as well as offering compactness for easy integration in all kinds of environments.

With the proper installation conditions, ozone disinfection leaves no chemical residue as it decomposes back into oxygen. This allows facilities worldwide to reduce their dependency on chemical treatment, leading to both environmental benefits and potential cost savings.

  • The only ozone generator specifically engineered for the aquaculture industry, including a non-corrosive plastic GFRP enclosure (IP65)
  • Market leading energy efficiency – <8.5 kWh per kg O3 (3.86 kW/lbs)*
  • Advanced modularity and scalability for a continuously optimized operation
  • Compact system expansion without the need for significant infrastructure modification
  • Optimized high-concentration ozone output ranging from 9–20 wt%
  • Integrated reactor cooling system for minimized energy requirements
  • Automated gas shutoff valves and integrated monitoring systems for enhanced operational safety

  • Performance, Gas & Cooling
  • Capacity* : 88 g/h - 440 g/h
  • Ozone Concentration** : 140-300 gr/Nm3
  • Control Range : 20-100%
  • Energy Consumption : 8.5 kWh/kg O3
  • Gas Pressure*** : 1.0-3.0 barg
  • Oxygen Purity : >92%
  • Oxygen Dew Point :
  • Cooling Water Temp : 2-30°C
  • Max Cooling Water Pressure : 7 barg
  • Enclosure & Controller
  • Ambient Temperature Range : 5-40°C
  • IP-Class : IP65
  • Control System : Beijer XPS / Siemens
  • External Com Port : Modbus TCP
  • HMI : 7” Touch

* At a ozone gas concentration of 140 gr/Nm3 (9 wt%)

** Standard version (High performance version 200-400 gr/Nm3 (13.4-25.0 wt%)

*** Standard version (High pressure version up to 4,5 barg (up to 72 PSI)
