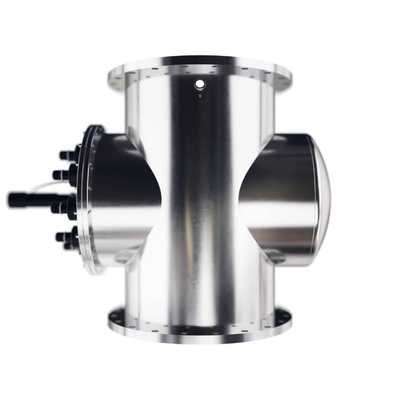

Ultraaqua - Model ULTRATRON Series -Advanced Oxidation Process UV Systems

OH-radicals react fast with most organic compounds in second-order reactions, resulting in complex radical chain reactions that often lead to mineralization of the organic compounds with CO2 and water as end products. AOP is frequently employed as a final polishing step in many water treatment applications, to provide combined disinfection and removal of trace organic compounds to very low levels, thus ensuring water of very high purity.

ULTRAAQUA provides the most efficient and customized AOP solutions using advanced integrated CFD, UV fluence field, and radical chemistry process models with the purpose of calculating and optimizing the space-dependent OH-radical concentration and prediction of the target compound degradation.

The result is a selection of reaction system, lamp type, and optimal reactor design that ensures an efficient treatment process, taking into account the physicochemical characteristics of the water matrix and target compounds. With highly complex water matrices, empirical target compound degradation can be obtained experimentally in ULTRAAQUA’s high-quality research laboratory.

• Guaranteed removal of targeted compounds
• Industry-leading energy efficiency in AOP system design
• Precise chemical utilization enabled by CFD- and UV-fluence-field-optimized hydraulic conditions
• Empirical validation of process efficacy incorporated into the system design
• Automated ULTRAWIPER™ quartz-sleeve cleaning for stable, uninterrupted performance
• High-grade electropolished stainless steel AISI 316L construction offering up to 30% energy savings through enhanced internal reflection

System Characteristics

• Reactor configuration: Inline, U-shape
• Material: Electropolished SS 316L, Super duplex
• Inlet/outlet connection: DN100 (4”) – DN1200 (48”) DIN, ANSI
• Pressure rating: Max. 16 bar
• Flowrates: 5 m3/h (22 GPM) – 6000 m3/h (38 MGD)
• UV transmission (UVT%): 60 – 100%
• Lamp type: ULTRATRON™ Medium-pressure High Intensity (MPHI)
• Lamp lifetime: Guaranteed 9 000 hours

Control cabinet characteristics

• Enclosure material: Painted steel, SS304, SS316L, GFRP
• UV intensity sensor: ÖNORM M 5873-1 certified, 360 degrees
• Sleeve wiping: Manual, automatic ULTRAWIPER™
• SCADA connection: Profibus, Profinet, MODBUS TCP/IP
• Enclosure rating: IP54, IP65
• Lamp driver type: Electronic variable output
• System voltage: 1x230V, 3x400V+N+Pe +/- 10%, 47-63Hz (other optional)
• UV dose pacing: Optional
