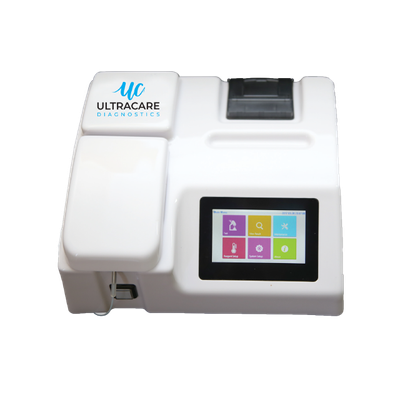

UltraCare - Model Ultra-Chem 90 -Semi Automatic Biochemistry Analyzer

The Ultra-Chem 90 Semi Automatic Biochemistry Analyzer is designed for precise biochemistry testing, offering real-time colored graphs and absorbance readings. It features a Windows Embedded Compact 7 operating system and a 4.3-inch true color touch screen for intuitive operation. The analyzer allows for 300 programmable tests and stores up to 1,000 results with editable patient information, all powered by an external universal power supply adaptor. The unit employs photometric analysis with an interference filter, offering an absorbance range from 0.0000 to 3.0000 with a linearity of +1% and repeatability of 0.001. Its spectral range is selected automatically via a filter wheel, supporting wavelengths of 340, 405, 505, 546, 578, and 630 nm including two free positions. The device is equipped with a long-life tungsten halogen lamp acting as a light source and a photodiode detector for accurate measurements.

Innovative Desi Smart Combination

Real time colored graph and absorbance.
Windows Embedded Compact 7
.43 Inch True Color Touch Screen
300 Programmable Test
1,000 Result Storage With Editable Patient Information
Universal Power Supply (external Power Adaptor)

Test Method

End Point With Standard/Factor
Two Point Kinetics (Fixed Time)
Multipoint Kinetics
Multi standard up to 8 standards
Biochromatic, Dual Wavelength
Absorbance

Display & Input System

4.3 inch color touch screen

Printer

Inbuit Thermal Printer (57mm)

Optica System

Principle: Photometric Analysis with Interference Filter
Absorbance Range: 0.0000-3.0000 (Linearity: +1%, Repeatability: 0.001, Resolution: 0.0001)
Spectral Range Selection: Automatic
Via Filter Wheel
Wavelengths: 340, 405, 505, 546, 578.630 nm + 2 Free Position, +2 CML Precision
Light Source: 6 V 10 W Long Life tungsten Halogen Lamp
Detector: Photodiode

Suction System

Pressure Auto releasing Peristalic
Pump
Suction Volume: 300 pi to 3.0 ml
Air Column facility after each sample to avoid carry over.

Cuvettes

Flow cell: Quartz 321
Path Length: 10 mm
Removable Cuvette (Square and round)

Operating Conditions

Temperature: 100C-370C
Relative Humidity: <85%

Quality Control

Lew-Jennings Chart Using
Westgards Rule
Auto Drawing of QC figures

Test Parameters Storage & CPU

Test Parameters: Up to 300
1,000 test results with editable patient information
Storage of Quality Control And standard results

Thermal System

Voltage: 100-240 VAC (Auto Adaption)
Frequency: 50160 HZ
Extemal Power Adaptor: 19 V 4.7 Amp
Dimensions: 300X250X140 (121A,H)
Weight: 5 Kg
Peltier Regulated 250 30’C, 37’C &Room Temperature
Accuracy, 0.30C btora
