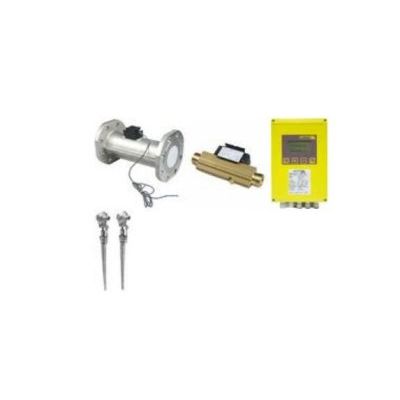

ultracon - Model EWZ 817-T -Ultrasonic Cold Measuring Meter

Function
Flow and cold quantity Determination of liquids

Technical properties

• nominal diameter DN 20 to DN 250
• flow range 3.0 m3/h to 1000 m3/h
• pressure stages (flanged design PN 25 / thread design PN 16)
• operating temperature - cold mete (EWZ 817-T): +2 °C to +50 °C
• application area water
• no moving parts in the flow
• low-maintenance
• signal output:
• standard 2x (0)4-20 mA / 3x frequency / pulse / status, M-Bus / Modbus
• (optionally up to 6x (0)4-20 mA, 7x frequency / pulse / status, additional M-Bus
• interface, RS 485, Ethernet interface)
• extensive data logger function
