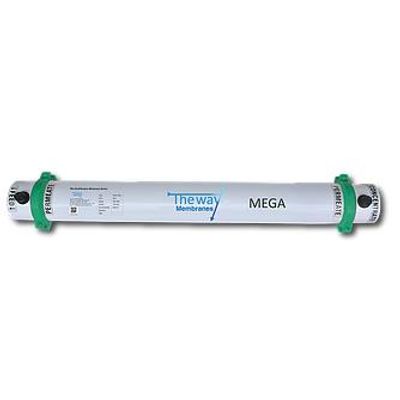

Mega - Model TW 250/1650 -Ultrafiltration Membrane

Type Hollow Fiber . MOC Membrane PES . Body PVC . Potting Epoxy . Cap PVC/PP . MWCO 100 KDa . Area 120 m2 . Size of Fiber 1.4mm ODX 0.8 mm ID. Flow Out-ln . Operating Mode Cross Flow . Feed Pressure 3 Kg/cm2 Max  Tr Memb Pressure 1 Kg/cm2 Max  Backwash Pressure 2 Kg/cm2 Max . Operating pH ltol3 . Operating Temp 45 Deg C  Feed Flux 50-100 L/m2/Hr . Backwash Flux 100-300 L/m2/Hr . Filtration Time 10-60 Mins . Backwash Time 1-10 Mins. Flush Time 1-10 Mins.
