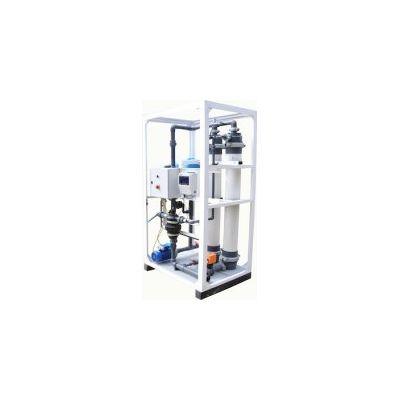

Water Miracle System - Model GH3000 -Ultrafiltration (UF) Water Treatment Plant

The Water Miracle is ideal as a temporary solution during humanitarian disasters and municipal emergencies or as a permanent solution in remote communities and job sites. The Water Miracle has been sucessfully deployed to natural disasters in Haiti and Chile and is currently installed as part of a pilot project in a Canadian First Nations water treatment plant.

Depending on the quality of the source water, activated carbon, ultraviolet light and/or chlorine disinfectin packages can be added to service as additional barriers.

How does a WaterFront unit work?
Each WaterFront unit is a plug-and-play system. Using the equipped submersible pump, water is taken from the source and is fed directly into the WaterFront unit. A pre-filter strainer removes larger particles from the feed water. The water is then filtered through Pentair X-Flow’s proven UF membranes, which remove suspended solids including viruses and bacteria.

• Treatment of most fresh water qualities
• No infrastructure needed
• One-button start-up
• No chemicals
• No waste residue
• Low maintenance costs
• Simple daily operation
• Robust construction

Output

• 3,024 L/hr (800 gal/hr)
• 72,576 L/day (19,200 gal/day) or

Weight

• 299.8 kg (661 lb)
• Dimensions
• 100.3 x 100.3 x 220 cm
• (39.5" x 39.5" x 86.6")
• Power Requirements
• Voltage 230V, 50 Hz, 25 Amp
• Installed power 3.0 kW
• Maximum consumed power 2.5 kW
• Average consumption 1.1 kW

Treatment Chain

• Microfiltration, ultrafiltration
• Portability
• 2 person
• Operators
• 1 person
• Materials
• Frame GVK, Piping PVC

Operating Connections

• Operating pressure 0 - 58 psi
• Operating temperature 0 - 104 °F

Norit X-Flow Membrane Specifications

• Module type SXL-225 PVC 0.8 UFC M5
• Number of modules 2
• Total membrane area 2 x 430 sq ft

Performance

• Flux 37.5 lmh (22 gfd)
• Recovery 80 - 85%
• Bacteria retention > 99.9999% 1
• Virus retention > 99.99% 1

The Water Miracle can be configured and ordered with the following options:

• Ultraviolet Light (UV), (NSF 55 Class A or standard)
• Granular Activated Carbon (GAC),
• Organic Colour Removal System (OCR), for high levels of organic tannins
• In-Line Chlorination System

Multiple Water Miracles can be operated in parallel for higher output requirements.

Long-term installations

• Norit WaterFront systems are the ideal solution for permanent or semi-permanent installations for locations such as remote work sites or small
• communities or to be used as an emergency back-up system for a municipality. Equipped with Norit X-Flow membranes as a primary barrier, the systems
• can be configured to deliver either 530 or 800 gallons of safe drinking water per hour. A range of optional post-treatment add-ons are also available
• to meet specific needs. Depending on the quality of the source water, activated carbon, ultraviolet (UV) light and/or chlorine disinfection packages can
• be added to serve as additional barriers.

Emergency response

• When combined with the optional secondary UV barrier and a stainless steel frame construction, the Norit WaterFront systems provide the ultimate
• emergency response water treatment system regardless of the source water conditions. Designed to be mobile, the units can be transported from
• location to location as needed. The units are capable of producing 530 gallons of high-
