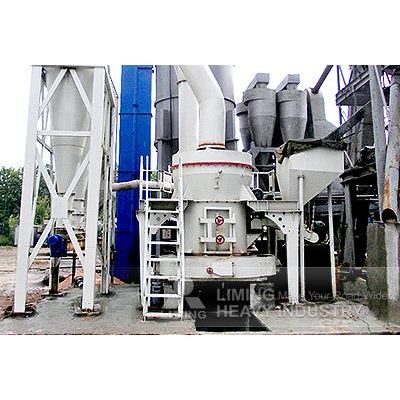

Liming - Ultrafine Mill

1. The main frame and the base are completely soft-linked to avoid vibration so that the precision of the classifier is improved.
2. The base is made of anti-crack nodular cast iron which boasts the strength of cast steel, the anti-vibration of cast iron and good impact resistance.
3. It is equipped the reducer that adopts the technology of German Flender, thus the machine`s stability is guaranteed.
4. The main frame and reducer are connected by pin coupling with elastic sleeve to improve the reliability of the whole equipment.
5. The classifier adopts high density impeller which can improve the fineness and capacity.
6. The classifier adopts frequency control of motor speed with the characteristics of energy-saving, precision, good process control mobility and high degree of automation.
7. Bypass powder collector is of low pressure loss and high efficiency.
8. The equipment employs the technology of same resistance arrangement which increases the efficiency, capacity and decreases internal circulation.
9. The discharges of the collector and dust remover are in the same line which is convenient for powder collecting and packing and reduces the amount of work.
10. The maintenance platform makes maintenance work safer and more convenient.

The main motor of Ultrafine Mill drives main axle and every layer rotating by the power of reducer. Dial drives numbers of rollers rolling and rotating in the ring by pintles. Big materials are crushed into small particles by crusher. Then they are sent to store house by elevator. Vibrating feeder send the materials evenly to the middle of the upper dial. Under the function of the eccentricity, the materials fall into the ring to be pressed, crushed and milled into pieces by rollers. After the first crush, materials fall into the second and third layer of the grinder mill. The pumping of the high-pressure centrifugal blower put the outside air into the ultra-fine mill. The coarse powder will be brought into the classifier.

Ultrafine Mill is used in processing fly ash

If a lot of fly ash abandoned, that not only takes up a lot of land, when meeting windy weather word, snowflake danced in the dust, pollute the air. The rainy day, sewage into underground pollution of groundwater, constitute the ecological and environmental double damage. Fly ash is mainly used in cement mortar and concrete etc, the mineral admixture, construct ports, improved farmland, and coal mine backfilling and subsided, also can from sorting drift beads, carbon, aluminum and other useful material. Ultrafine Mill plays an important role in processing fly ash. Not only solves the reuse of fly ash covering problem, the environmental pollution, still can save lots of natural material.

Ultrafine Mill can be used in kaolin industries

Kaolin is part of our natural world, and its uses are multiple and diverse. Because of its whiteness, fine particle size and plate-like structure, kaolin is suitable as a coating, functional filler, extender, ceramic raw material and pigment. It also holds importance as a raw material in refractory applications, catalysts, and concrete and fiber glass. Kaolin is a unique industrial mineral that remains chemically inert over a wide pH range and offers excellent coverage when used as a pigment in coated films. Liming ultrafine mill can be successfully processed kaolin and it has simple structure, easy operation, large capacity, a series of energy saving and environmental protection.

Ultrafine Mill can be used in calcium carbonate powder

Calcium carbonate powder plays an important role in many industries from agriculture to light and heavy industries, so the calcium carbonate grinding mill plant is necessary and useful. Ultrafine mill is an equipment which produces thin powder and super thin powder. It will heighten pollution and noise by using deduster and muffler, which achieves environmental protection requirement.
