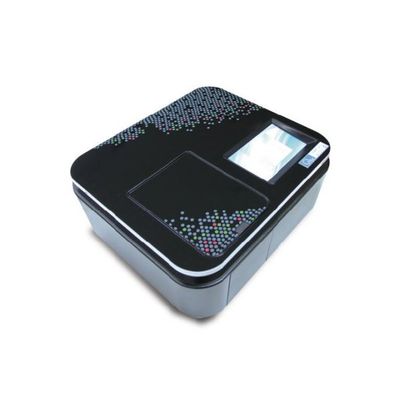

C-MAC - Model QVIS 5000H -Ultralight (288g) Portable Water Quality Analyzer
Water analysis methods provide more than 150 by certificated USEPA. Save more than 1,000 user programs. 16mm, 25mm, 1inch round cells and 8-position standard quadrangle (10mm). Using the excel sheet by central control software, save the data in Excel or text format. 4 USB port; Measured value is saved using a USB. Voice Guidance. D2 lamp 2 years warranty conducted 2,500 hours free of charge. It is possible to check temperature of measuring position. 7inch color touch screen LCD. Product to diagnosis and correction through online. Upgrade the software and hardware through online. Self-functions about check the lamp and wavelength calibration. Support the USB type printer (the direct connection to a local / network printer). Saving data of 2GB. Product control method based on the window CE operating system. Acquired ISO9001/14001, GMP&CE.
- Spectral Bandwidth : < 1.8 nm
- Wavelength Range : 190 ~ 1100 nm
- Wavelength Accuracy : ± 0.5 nm (at D2 Peak 656.1 nm, 486.0 nm)
- Wavelength Repeatability : ± 0.1 nm
- Wavelength Adjustment : ± 0.1 nm
- Wavelength Rotation Speed : about 7800 nm/min
- Wavelength Scanning Speed : Max 4000 nm/min
- Photometric range : -3.0 ~ 3.0 Abs
- Photometric Accuracy : ± 0.005 Abs (at 1.0 Abs)
- Photometric Accuracy : ± 0.003 Abs (at 1.0 Abs)
- Scattering -> Scattered light : < 0.05% T at 220 and 340 nm
- Baseline Stability : < ± 0.001 Abs/h (at 550 nm)
- Baseline Flatness : < ± 0.002 Abs/h (at 550 nm)
- Light Source : Tungsten-Halogen lamp(TH), Deuterium lamp
- Wavelength Light Source Replacement : 340 ~ 410 nm (Defalut 370 nm), include Auto Position System
- Monochromator : Modified Czerny-turner, 1200 Line/mm Blazed Grating
- Interface : 4USB ports / 3 RS-232C ports
- Data Srotage : 2 GB (8 GB optional)
- Dimension : 433(W) x 381(D) x 180(H) mm
- Detector : Silicone Photodiode
- Power : AC 220V, 50/60Hz
