Ultrasonic Algae Control Technology

0

LG Sonic's ultrasound technology reduces algae up to 90% and prevents the growth of new algae. The environmentally friendly ultrasonic sound waves provide a long term solution for a healthy ecosystem.


The ultrasonic algae control devices emit specific ultrasonic parameters in order to control algae and biofouling in lakes, reservoirs, and industrial applications.

  • Eliminate up to 90% of existing algae and prevent new algae
  • Chemical-free solution that is safe for fish and other aquatic life

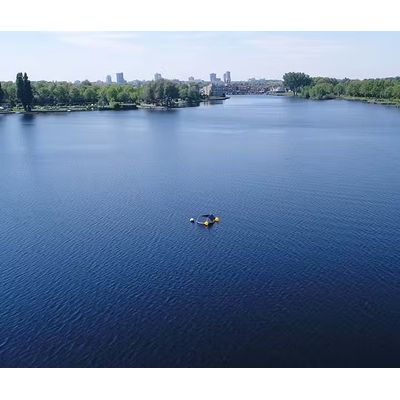

  • Treat large water surfaces, such as lakes and reservoirs
  • Requires little maintenance to prevent frequent site visits

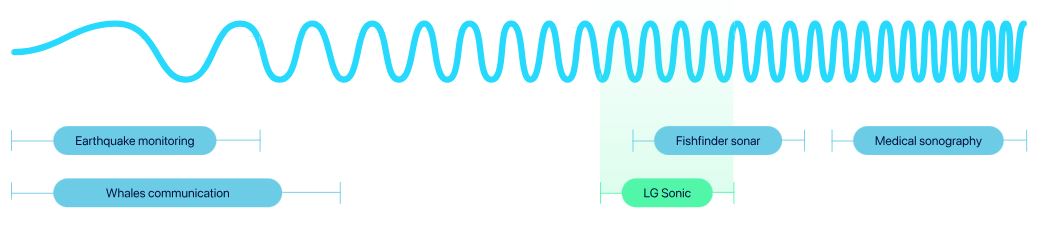

We use scientifically proven ultrasonic frequencies to control many types of algae. A very common differentiation is between green algae and toxic cyanobacteria, which are also known as blue-green algae.

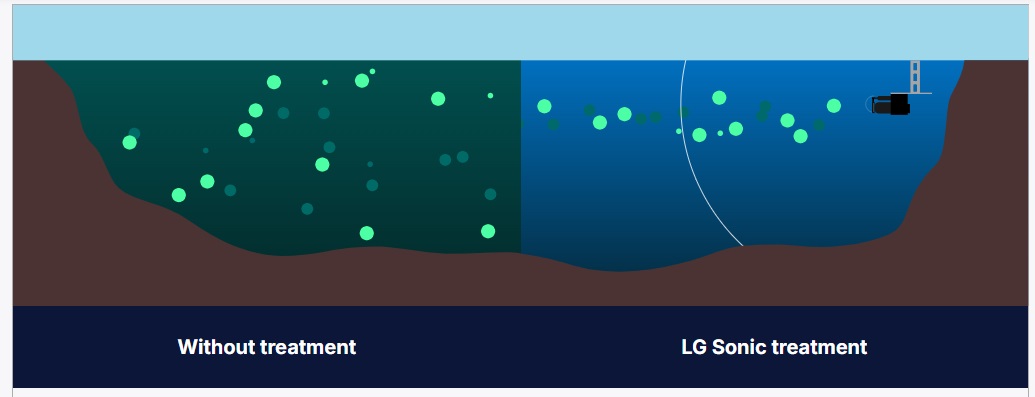

1. Create a sound barrier

Blue-green algae and some green algae are capable of travelling through the water vertically due to their possession of gas vesicles. The ultrasonic sound waves create an ultrasonic pressure in the top layer of the water.

2. Lack of light

This ultrasonic sound barrier prevents the algae from rising to the surface and absorbing light for photosynthesis. Therefore, algae are no longer capable of growing further.

3. Control algae growth

The algae will die while the cell wall remains intact, preventing the release of toxins from the algae into the water. The algae will sink to the bottom of the water reservoir and are degraded by the bacteria present.


Continues water quality monitoring combined with environmentally friendly ultrasonic sound waves provides a long-term solution for algae problems.

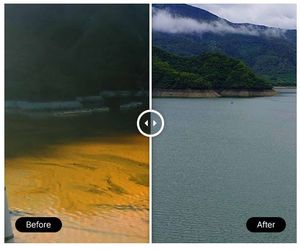

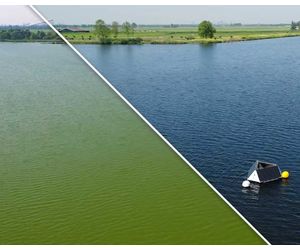

After one year treatment, the algae level will reduce even more as increased clarity of the water will result in plant growth, increased oxygen and fish growth. This way, the ultrasound treatment contributes to a healthy ecosystem.

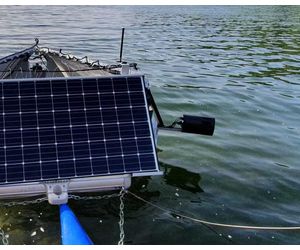

Since the spring of 2014, four solar-powered algae control buoys are operating in the Canoe Brook Reservoir in New Jersey to control cyanobacteria in the raw water reservoir, the reservoir is managed by American Water.


The effects of our ultrasonic algae control products have been tested by various universities and are proven to be safe for fish, plants, zooplankton, and insects.

The University of Portsmouth, UK; UNICET Catania, Italy; and BOKU, Austria found that LG Sonic units are safe for fish. The devices have been tested on their effect on zooplankton, and no negative effect was found. The products are not based on cavitation, which is a phenomenon where high-power ultrasound causes the formation of micro-bubbles that implode, causing intense heat pressure. These processes can destroy cells and might harm fish and plants.


Based on real-time water quality data we are able to modify the ultrasonic program to the specific water conditions.

The real-time water quality monitoring is automatically integrated in the MPC-Buoy system. The MPC-Buoy contains detailed monitoring equipment, providing a complete overview of the water quality and controls the algae accordingly by using ultrasound. Web-based software (MPC-View) allows users to visually follow the water quality and the progress of the ultrasonic treatment.


Satellite remote sensing technology allows to accurately map the algae distribution in large water bodies.

LG Sonic has integrated the satellite remote sensing technology to accurately map the spatial and temporal distribution of the water quality parameters to generate a complete overview of the algae distribution in large water bodies.

Unique Chameleon™ technology allows to adjust the ultrasonic program to the specific water conditions.

The LG Sonic e-line has 12 ultrasonic programs to effectively control different types of algae in ponds, wastewater treatment plants, and other applications.

Chameleon Technology™ makes it possible to change the ultrasonic program according to the water conditions, type of algae, and type of application, thereby providing the most effective solution for each specific situation.

Benefits
  • More efficient algae control
  • Shorter treatment time
  • Prevent the occurrence of resistant algae

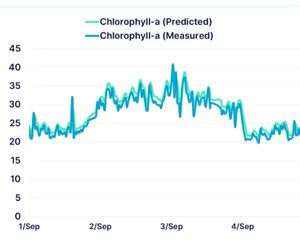

Continuous water quality monitoring combined with web-based software allows for an early warning of toxic algal blooms in lakes, seas, and desalination plants.

A floating buoy system measures essential algae indicators (Chlorophyll-a, Phycocyanin, and Turbidity) and water quality parameters (Dissolved Oxygen (DO), Redox, pH, and Temperature) in order to monitor the water quality. The measured data can be viewed in real-time via a web-based software called the MPC-View.


Control biofouling and reduce chemical dosage with the LG Sonic industrial line.

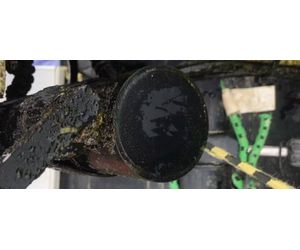

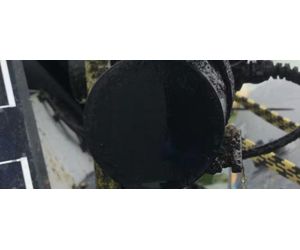

The ultrasound prevents the biofouling from attaching to cooling basins, industrial equipment, and sea chests.
