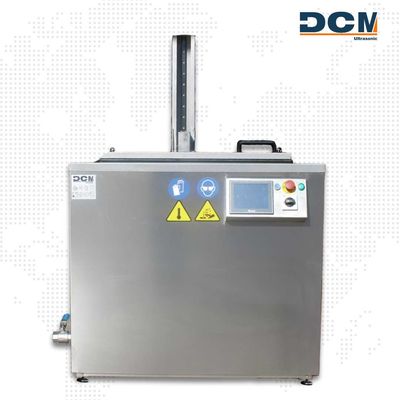

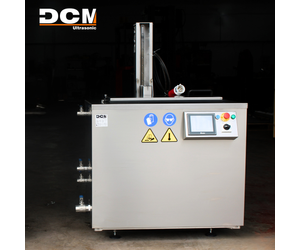

DCM Ultrasonic - Model UCM-100 DL -Ultrasonic cleaning machine

The DCM Ultrasonic UCM-100 DL model has been designed to deliver exceptional performance in cleaning and pickling small, lightweight parts, combining ultrasonic power, structural reliability, and ease of use in a compact and robust unit.

Its design incorporates a high-precision pneumatic lift capable of handling loads up to 60 kg, ensuring safe and comfortable operation even in repetitive cycles. In static mode, the tank has been structurally engineered to withstand maximum loads of 125 kg, expanding its range of applications to components with higher density or complex geometries.

One of the UCM-100 DL's most outstanding features is its integrated oil and floating particle separation system, which automatically transfers residue from the main tank to an auxiliary settling tank. This system keeps the bath surface clean, preventing the redeposition of contaminants onto the parts at the end of the process. The result is a more homogeneous, controlled cleaning process without surface residue.

The total ultrasonic power of 1000 W, applied to a 100-liter tank, generates an energy density of 10 W/liter, an optimal balance between cavitation intensity and energy efficiency. This power level, combined with the tank's internal geometry and DCM Ultrasonic's patented ultrasonic generation technology, guarantees uniform wave propagation, ensuring consistent results even in the most inaccessible areas of the parts.

In terms of materials, the machine is constructed entirely of AISI 304 stainless steel, providing excellent mechanical strength and corrosion resistance. The ultrasonic emitters, made of AISI 316, offer enhanced protection against chemicals and harsh environments, ensuring a long lifespan and stable operation even under intensive conditions.

The UCM-100 DL's graphical interface has been designed for simple and intuitive operation, with digital control of temperature, time, and ultrasonic power. Furthermore, the system allows for remote monitoring and control, facilitating its integration into automated environments or connected production lines within the framework of Industry 4.0.

Thanks to its optimized design, high energy efficiency, and the precision of its ultrasonic system, the UCM-100 DL stands out as one of the most complete and versatile machines in its class. It is the ideal choice for companies seeking high-quality industrial cleaning results, reduced operating times, and reliability guaranteed by DCM Ultrasonic's 100% Spanish engineering.
