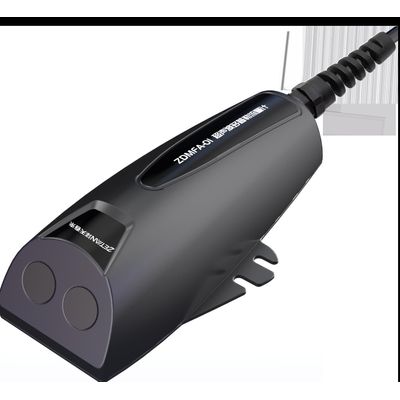

Zetian - Model ZDMFA-01 -Ultrasonic Doppler Flow Meter
Based on the Doppler effect, the ZDMFA-01 Ultrasonic Doppler Flow Meter can simultaneously monitor the flow rate, velocity, water level, water temperature and other parameters with millimeter-level accuracy, suitable for fluid flow measurement in a variety of environments. In a one-package structure, the product is easy to operate, waterproof and pressure resistant, not affected by external environments and has a low failure rate. Therefore, the product meets the user's requirements for high accuracy and high stability.Cross-sectional velocity measurement: streamlined compact structure design for less impact on the water cross-section flow pattern;
High measurement accuracy: Doppler shift algorithm ensures stable measurement results and accurate velocity resolution down to the millimeter level;
Diverse functions: in addition to measuring the flow rate, it can also detect the depth of water level and water temperature in real time;
Low power consumption design: embedded hardware and software integration in a miniaturized package with low power consumption;
Wide range of application scenarios: can be applied to occasions where the full pipe flow or partially full pipe flow is greater than 20mg/L, as well as river, channel flow measurement;
High protection level: meet IP68 protection level, can be applied to a variety of different occasions.

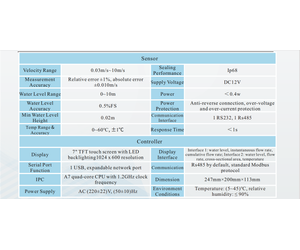

Velocity Range:0.03m/s~10m/s
Sealing Performance:IP68
Measurement Accuracy:Relative error ±1%, absolute error ±0.010m/s
Supply Voltage:DC12V
Water Level Range:0~10m
Power:<0.4w
Water Level Accuracy：0.5%FS
Power Protection：Anti-reverse connection, over-voltage and over-current protection
Min Water Level Height：0.02m
Communication Interface：1 RS232, 1 Rs485
Temp Range & Accuracy：0~60°C, ±1°C
Response Time：<1s
Display:7" TFT touch screen with LED backlighting1024 x 600 resolution
Display Interface；Interface 1: water level, instantaneous flow rate, cumulative flow rate; Interface 2: water level, flow rate, cross-sectional area, temperature
Serial Port Function：1 USB, expandable network port
Communication:Rs485 by default, standard Modbus protocol
IPC:A7 quad-core CPU with 1.2GHz clock frequency
Dimension:247mm * 200mm * 113mm
Power Supply:AC (220±22)V, (50±10)Hz
Environment Conditions:Temperature: (5~45)°C, relative humidity: ≤ 90%
