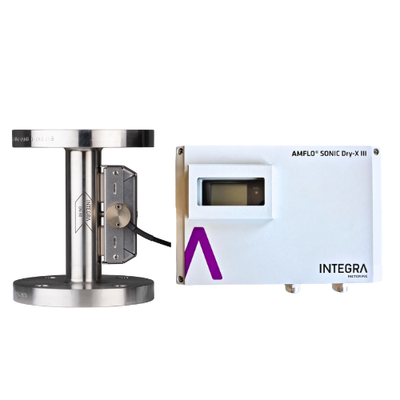

Integra - Model Amtron Sonic Dry X III -Ultrasonic Flow Meter
Ultrasonic flow meter with an innovative replacement concept.
Most popular related searches
- Maintenance-free ultrasonic flow meter
- Simple installation and accurate ultrasonic measurement
- Recalibration during operation without interfering with the hydraulics
- Measuring electronics with aluminum housing with good EMC protection
- Measuring electronics with display showing the flow rate and speed of the medium
- Installation control of signal strength and signal quality
- No moving parts
- No inlet and outlet sections required
- Free pipe cross-section, no components in the medium
- Media-independent flow measurement
- Installation position as required
- Nominal diameter DN 32 – DN 250
- Nominal pressure PN 16 bar / PN 25 bar / PN 40
- Temperature (TFluid): 0°C to 130°C
- Ambient temperature (TAmb): 5°C to 55°C
- Flanges and measuring tube made of stainless steel AISI 316L (1.4404)
- Power supply via CALEC® ST III Smart / Advanced calculator
- Protection class sensor head IP 68, measuring electronics IP 54
- High measuring dynamics up to 1:250
- Class 2 according to EN 1434
- Supplied with 10 m coaxial cable
- Approval according to MID/2014/32/EU and PTB cold K 7.2
