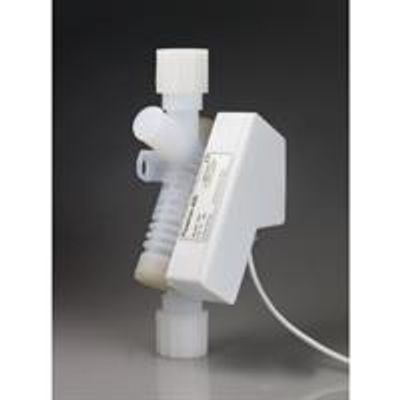

iCenta Flowmax - Model 400i -Ultrasonic Flow Meter

Features of the Flowmax 400i Ultrasonic Flow Meter include:

• No moving parts and is free of wear
• The design of the pipe minimizes dead space over the whole geometry
• All parts having contact to the medium are PFA (New Teflon).
• Suitable for very alkaline, very toxic and/or very aggressive media like concentrated acids and leaches.
• CIP or SIP cleaning processes are possible.
• The measuring result is provided over a scalable pulse output and a programmable current output.
• All parameters of the flowmeter are individually configurable with MIB PC-Software FlowSoft® and USBtoRS485-Converter.
• The integrated gas control with empty pipe detection at the alarm output offers additional information.
• Process connection of Flowmax® 400i is free of seals using flare technology or NPT-screwing.

The Flowmax 400i is a flow meter for measuring liquid flow. The 400i is especially suited to measure dynamic processes in closed pipes of an automation environment.

Specification Detail of the Flowmax 400i Ultrasonic Flow Meter:

• Pipe Size : DN15 – DN25
• Material Body : PFA (new teflon)
• Flow Range : 0,03/0,09 – 6 0,3 – 24 0,9 – 60 1,2 – 120 l/min
• Accuracy : ±1% o.r. ±3 mm/s (o.r. = of reading)
• Operating Temp Range : 0 to 80°C
• Pressure Range : 7 Bar G
• Outputs & Comms : 0/4-20 mA, RS485-interface + 2 digital outputs
• Insertion / Inline : Inline
• Fluid Type : Liquid
• Applicable Liquids : Clean water, chemicals toxic acids and alkalis & DI-water
• Power : 24 VDC / 3,6W
• Approvals : CE
• Connection Type : Sealless tube connection (flare)
