ISOIL Industria Spa

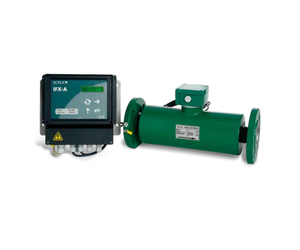

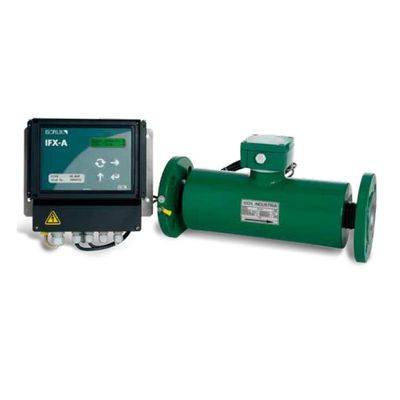

ISOFLUX - Model IFX-A -Ultrasonic flow meter
The ISOFLUX IFX-A ultrasonic flow meter is suitable for applications on clean water and low conductivity liquids. It belongs to a complete range of flow meters ISOFLUX, intended for flow measurements of conductive, non-conductive liquids, the range includes the following versions: IFX-A – AC mains powered meters (in this product sheet) IFX-B – Battery powered meters IFX-R – MID certified battery water meters Ultrasonic flow meters operate on transit time principle by measuring the time difference of ultrasonic waves traveling in and against the direction of the fluid flow.Most popular related searches
ultrasonic flow meter
flow meter
water ultrasonic flow meter
water metering
water meter
water flow metering
water flow meter
flow monitoring
ultrasonic water meter
ultrasonic water flow meter
Technical Specifications
- For applications on clean water and low conductivity liquids.
- Operating principle based on the measurement of transit time.
- Available with single or double beam.
- Flanged connections according to DIN or ANSI standards.
- Available in diameters from DN 32 to DN 800.
- Measuring tube in stainless steel.
- Carbon steel flanges and outer tube.
- IP 68 waterproof sensor
- Converter with display in separate version with cable (5m standard).
- Mains power supply 90-230 V AC
- Pulse or 4-20 mA output.
- High precision and reliability thanks to the absence of moving parts.
