Durag - Model D-FL 220T -Ultrasonic Flow Velocity Monitor
FromDURAG GROUP

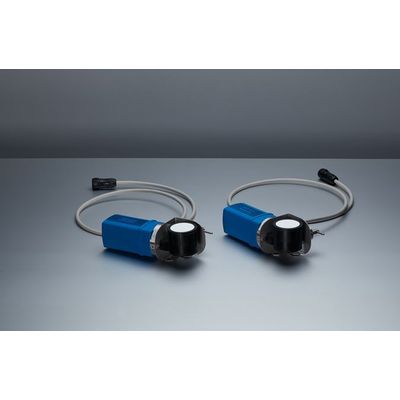

Measuring system for continuous evaluation of flow velocity and flow direction in tunnels. Ultrasonic sensors for tunnel ventilation control system. Reliable measurement across the tunnel profile. Two identical sensors alternately transmit and receive ultrasonic pulses. The system evaluates the transition times dependant on direction and calculates flow speed. D-FL 220T requires extremely low maintenance.
Most popular related searches
flow velocity
ventilation control
flow monitoring
air flow monitoring
flow velocity monitoring
air monitoring
tunnel sensor
tunnel ventilation
ultrasonic sensor
atmospheric sensor
- stand-alone system, no control unit required
- simple configuration
- corrosion resistant against aggressive tunnel atmosphere
- sensors can be replaced quickly, no tools, no re-alignment required
- signal transmission
– per 4-20mA analog signal and 2 relays
– per RS 485 bus via MODBUS RTU protocol - minimized spare requirements
- extremely low maintenance
- Precise Air Speed and Volume flow Monitoring
Ultrasonic technology allows precise measurement of the average air flow along the whole tunnel cross section - Easy system setup and autonomous Operation
Measuring device does not require an additional operation unit. Measuring devices can be replaced quickly with no tools or re-alignment required - Long Lifetime and extremely low maintenance requirements
No consumables and no moving parts stand for low maintenance costs and a long Lifetime - Robust Design for a wide range of environmental conditions
High-quality, corrosion-free plastic housing and a wide ambient temperature range - Easy connection due to configurable interfaces
Connection to tunnel control system either via freely adjustable analogue output, relay or RS-485 Modbus RTU - Field-tested in road- and railway-tunnels
Long-standing experience in various tunnel applications including high-speed railway tunnels
suitable for flow measurement in
- road tunnels
- railway tunnels
provides signals for ventilation control system
- to monitor the air flow speed
- to allow control of flow speed in case of fire
