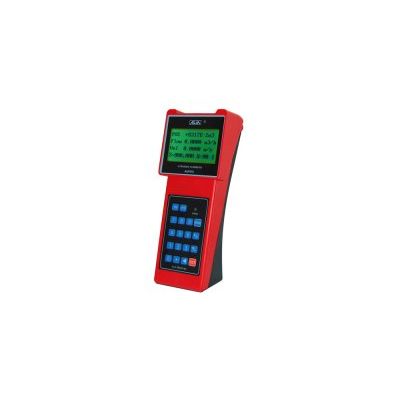

Alia - Model AUF610 Series -Ultrasonic Flowmeter

SHARE

AUF610series is a portable transit-time ultrasonic flowmeter with clamp-on transducers for non-invasive liquid measurement. Based on microprocessor, field programmable flow measurement technique allows no interruption to the process flow and has low installation costs.

Most popular related searches
ultrasonic flow meter
transit time ultrasonic flow meter
transit-time ultrasonic flow meter
flow meter
data logger
flow monitoring
portable ultrasonic flow meter
field monitoring
portable flow meter
  • 4 line LCD to display flowrate,totalizer signal condition..Etc
  • The flowmeter is designed in high accuracy +/-1.0%
  • Small sized(210 * 90* 30mm) light-weight(500g)
  • Wide range, Velocities( 0.01 ~ +/- 32 m/s)
  • Ni-MH Battery support at least 10 hours continuous operation
  • Maximum temperature 160 oC
  • Transducers for pipes size from 15 to 6000 mm((1/2" ~ 240")
  • Transducers contains magnet devise, which can installed on metal pipe without mounting belt
  • Data logger which records flowrate,date,total flow ,signal condition..Etc
  • Response time less than 1 second
