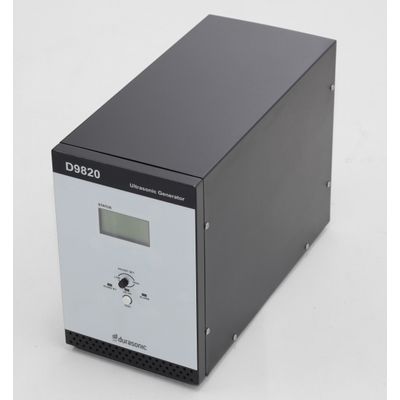

Durasonic - Model D9820 -Ultrasonic Generators for Welding
Our digital ultrasonic generator for welding enables fast, precise process control and offers a number of additional advantages.
Most popular related searches
- Supports RS485 & User I/O ports for PLC control.
- Adjustable soft start times and digital output adjustments are part of the functionality of this product line.
- 6 types of protection : Output, Voltage, Current, Phase, Frequency, Temperature
- Frequency Tracking : PLL Control
- SCAN Function : Support
- Amplitude Control : 0 ~ 100% (1% units)
- External Control : RS422, RS485, User I/O
- Soft start time : 50 ~ 1000ms
- Other Functions : Frequency shift, Seek, LCD Display
- Output Voltage 2500W
- Input Voltage Single Phase AC 220V * 50/60?
- Maximum Current 13A
- Frequency 15~20 ?
- Size(mm) 300(H) x 200(W) x 430(L)
- Weight(kg) 8.2kg
