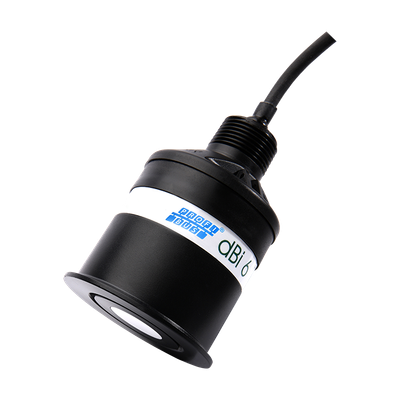

Pulsar - Model dBi Profibus Series -Ultrasonic Intelligent Transducers
The dBi Profibus series transducers are a range of non-contacting, ultrasonic level sensors that make use of the widely used Profibus Protocols. The self-contained level sensors are available in a variety of different measurement ranges ranging from 125 mm to 15 m (4.9 in to 49.2 ft) to suit a wide range of applications from wastewater level measurement to industrial level requirements.
The dBi Profibus non-contacting level sensors are compatible with Profibus profile 3.0.2 and provide very high resolution to give exceptional accuracy and a rapid response time of 1 second! The sensors also benefit from Pulsar Measurement`s unique DATEM echo processing technology, so the level sensors are able to zone in on the true target and map out interferences. The transducers can be programmed with Pulsar`s PC Software or using PLC / HMI with Profibus Network.
To find out more about the dBi level sensors, see the Downloads tab below.
- Self-contained
- Two-wire
- Solids or liquids applications
- Various Mounting options
- ATEX Approvals
- DATEM digital echo processing software
- Uses the standard programming tools on our dedicated PC system
Spec: Description:
- Housing Material: Valox 357 PBT (Polybutylene terephthalate)
- Temperature Compensation: Internal temperature sensor, ±0.5 °C (±0.5 °F)
- Transducer Cable Requirements : Twin screened. Integral cable length 5 m, 10 m, 20 m, and 30 m (16.4 ft, 32.8 ft, 65.6 ft, and 98.4 ft).
- Operating Temperature: Process Temperature -40 °C to +80 °C (-40 °F to +176 °F)
- Ingress Protection: IP68 to BS EN 60068-2-17:1995 and BS EN 60529 (Nema 6P available)
- Power: Bus-powered, per IEC 61158-2; 20mA (general purpose or I.S. version) 20mA 18-24 V DC
- Update Time : PA modem; Simatic PDM, EDDL, FDT/DTM on request. PC interface 2-wire loop powered from PC or laptop. No external power required.
- Outputs: Profile 3.0.2, Class A with I&M functionality
Option: Description:
- Measurement range: 125 m to 15 m (4.9 in to 49.2 ft)
- Accessories: Drip Shield
- Submersible Shield
- Mounting: 1.5 in Thread or 1.5 in Thread PVDF face
