Innolev - Model 200 -Ultrasonic Level Difference Meter
innoLev 200 split ultrasonic level difference meter uses state-of-the-art, non-contact ultrasonic measurement technology, can carry out a variety of liquid and solid level measurement. innoLev 200 can not only achieve double point level measurement, you can also measure the level difference.
Most popular related searches
ultrasonic level meter
ultrasonic level
point level monitoring
water treatment chemicals
level monitoring
paper mill
ultrasonic sensor
water treatment
water treatment industry
industrial water treatment
Application:
- Water Treatment, Chemical industry, Food Industry, Steel/Paper Mill
Features
- Adopt a unique digital extraction technique to handle echoes
- Simple and easier installation method
- The controller is mounted separately from the sensor
- Built-in temperature compensation sensor
- RS485 Modbus Communication
- Chinese / English menu
Technical Data
- Model: innoLev 100/200
- Measuring Medium: Liquid/Solid/Pipe
- Input

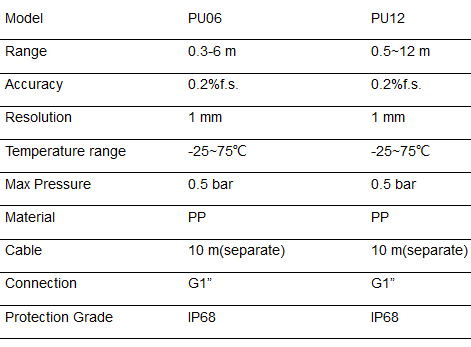

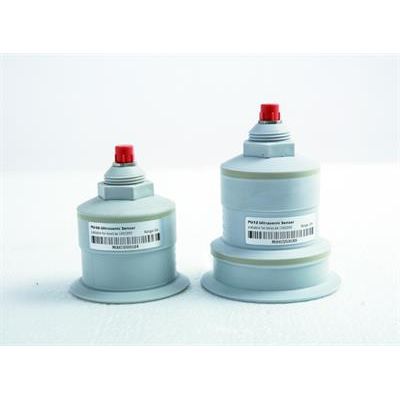

- Measuring sensor:PU06/12 Ultrasonic Sensor
- Output
- Analog Output 1: 4-20 mA isolated current represent any segment ;Load:Max.600Ω
- Analog Output 2:4-20 mA isolated current segment of the measuring scale;Load:Max.600Ω
- Relay 1&2 (Alarm):
- Operation: ON/OFF
- Selectable action : High / Low
- Set Point: High/10.00mg/L; Low/4.00mg/L (adjustable)
- Hysteresis: 0.10mg/L (adjustable)
- Relay contacts: 5A/250VAC; 5A/30VDC
- Interface
- RS 485 Modbus RTU
- Baud rate: 9600 bps
- Data format: 8 bit
- General Information
- Power supply: 90 - 260V AC, 50/60Hz; 24VDC(Optional)
- Temperature:
- Operating temperature: 0 - 60℃
- Storage temperature: -20 - 70℃
- Humidity: Max. 90% rH at 40℃ (non-condensing)
- LCD Screen: Big-size screen of crystal display, white back light
- Language: Chinese / English
- Passcode: Set mode: 0022 , Calibration mode:0011
- Protection grade: IP65
- Dimensions: 144 * 144 * 110mm
- Installation: Wall/Pipe/Panel Mounting
- Panel Cut Size: 138 * 138mm
- Weight: 0.85Kg
