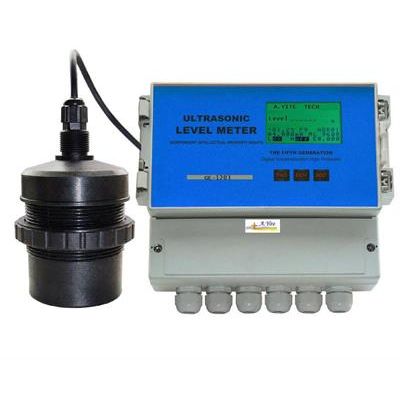

A.YITE - Model GE-1203 -Ultrasonic Level Meter Separated Body
FromZHOU ENSI LTD
GE-1203 compact ultrasonic level measurement transmitters are designed to measure liquid and solids levels, up to a range of 40 meters. The range can be configured by the keyboard and display. The level meter is mounted on top of the vessel or tank.
Most popular related searches
ultrasonic level
ultrasonic level monitoring
ultrasonic level meter
level monitoring
ultrasonic level transmitter
level transmitter measurement
level transmitter
ultrasonic transmitter
The microprocessor sent an electronic pulse, then the transducer converts it into an acoustic pulse. The pulse travels to the level that is being measured and reflected back to the transducer. The transducer then converts its energy back into an electronic signal and stops the counter in the microprocessor. Knowing the speed of sound through the air, then it can accurately determine the distance.
- Output: 4-20mA or RS485
- Voltage: AC220V; DC24V
- Control: 4 Relay, programmable control for high & low limit
- Level Range: 5m ~ 10m ~ 15m ~ 20m (40m is available)
- Accurancy -/+0.25%
- Temperature: -25C ~ 80C
- Resolution: d=1mm(Level Range < 15m) d=1cm (Level Range > 15m)
- Protect Class IP67
