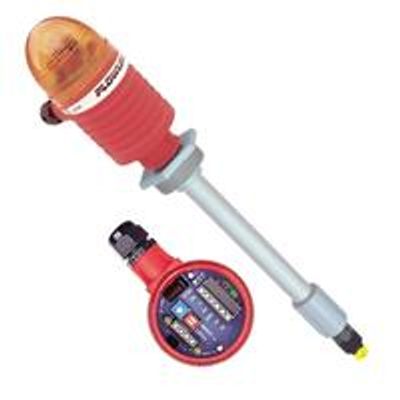

Switch-Pak - Model AU13 -Ultrasonic Level Switch with CLC

Features of the Ultrasonic Level switch include:

• PP or PVDF construction for use in challenging corrosive environments
• Fail-safe relay control of pumps and valves with 0-60 second time delay
• Offered in 3 sensing technologies for broad application coverage
• Compact flash alarm indicates high level condition to on-site personnel
• PP enclosure rated NEMA 4X with 300° conduit swivel base
• Length: 15cm to 3m
• Switch points: 1 (set by factory)
• Contact type: SPDT relay
• Process mount: 2″ G (2″ NPT)

• Suitable for corrosive liquids
• NEMA 4X rated enclosure
• Optional strobe alarm

• Mount on the top wall of the tank
• Select length for custom set points
• Relay output interfaces directly with valve, buzzer, alarm etc
• Ideal for high level overflow protection or low level pump protection

The Switch-Pak Ultrasonic Level switch with Compact Level Controller is a general purpose switch package providing a complete solution for high level spill prevention with a fixed level switch point and 10A compact relay controller for pump or valve actuation.

Specification Detail of the Switch-Pak Ultrasonic Level Switch:

Length
15cm to 3m

Enclosure Material
PP, UL94VO, PC

LED Indication
Sensor, power, relay

Pressure Range
Up to 10bar

Strobe Type
Xenon Tube

Strobe Flash
1 per second

Operating Temp Range
-40° to 80°C

Orientation
± 20° vertical

Contact Type
(1) SPDT relay

Contact Output
Selectable NO / NC

Supply Voltage
120 / 240 VAC @ 50-60 Hz

Approvals
CE

Classification
General Purpose
