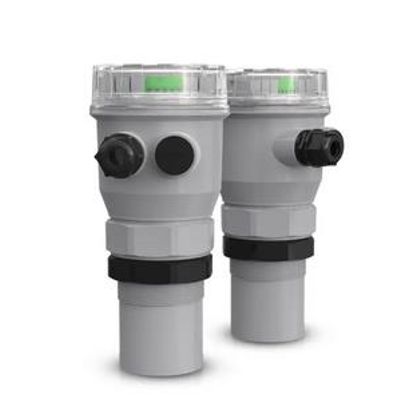

MeaconModel MIK-ZP -Ultrasonic Level Transmitter

SHARE

MIK-ZP Ultrasonic level transmitter taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication. The master chip is imported technical m single chip with relevant application specific ICs such as digital temperature compensation. It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication. Features Measure range:0 ~ 15mBlind zone:

Most popular related searches
  • Product: Ultrasonic level transmitter
  • Model: SUP-ZP
  • Measure range: 5?10?15m
  • Blind zone:
  • Accuracy: 0.5%F.S
  • Display: OLED
  • Output (optional): 4~20mA RL>600Ω(standard) RS485, 2 relays (AC: 5A 250V DC: 10A 24V)
  • Material: ABS, PP
  • Electrical interface: M20X1.5
  • Power supply: 12-24VDC, 18-28VDC (two Wire), 220VAC
  • Power consumption: <1.5W
  • Protection degree: IP65(others optional)
