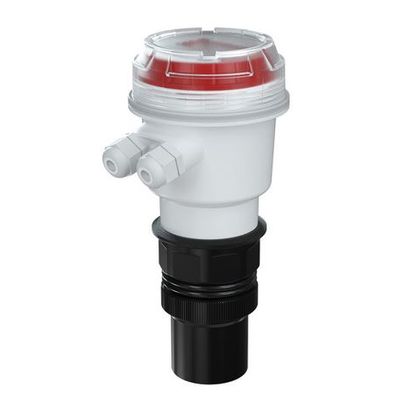

Asmik - Model MP-A -Ultrasonic Level Transmitter

• Measure range: 0 ~ 30m
• Blind zone: 0.35m
• Accuracy: 0.5%F.S
• Power supply:  (14~28) VDC;

Features

• Backup and recovery parameter set
• Free adjustment of the range of analog output
• Custom serial port data format
• Optional increment/difference distance measurement to measure air space or liquid level
• 1-15 transmitted pulse intensity depending on working conditions

MP-A ultrasonic level transmitter has perfect level monitoring, data transmission and man-machine communication. It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication.

• Product: Ultrasonic level transmitter
• Model: SUP-MP-A/ SUP-ZP
• Measure range: 5?10m (others optional)
• Blind zone: 0.35m
• Accuracy: ±0.5%FS(optional±0.2%FS)
• Display: LCD
• Output (optional): 4~20mA RL>600Ω(standard), RS485: 2 relays
• Measuringvariable: Level/Distance
• Power supply: (14~28)VDC (others optional)
• Power consumption: <1.5W
• Protection degree: IP65(others optional)
