Magnetrol, a brand of AMETEK

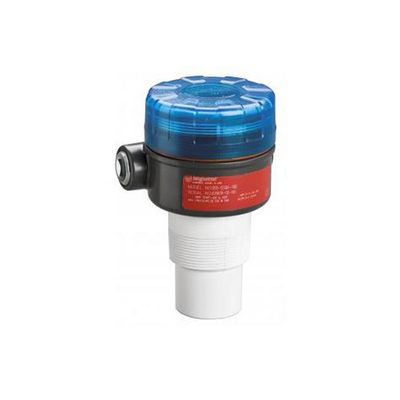

Magnetrol - Model Echotel 355 -Ultrasonic Liquid Level Transmitter
Echotel Model 355 is a loop-powered, non-contact-type ultrasonic transmitter that performs liquid level, volume or open channel flow measurement. HART communications are offered with a PACTware PC program for remote configuration and troubleshooting.
Most popular related searches
open channel flow monitoring
channel flow monitoring
open channel flow
ultrasonic transmitter
liquid level transmitter
flow monitoring
level transmitter
ultrasonic level transmitter
ultrasonic level
flume weir
Settings
- PACTware PC program using HART Communications for remote configuration, advanced diagnostics, performance trending and troubleshooting
- Menu-driven 4-pushbutton, 2-line x 16 character LCD user interface
- False target rejection for identification of true echo from liquid surface
- Common tank shapes and 20-point custom table for volume measurement
- Resettable and non-resettable 7-digit flow totalizers
- Flume and weir curves for open channel flow measurement, in addition to a 20-point custom table and a generic discharge flow equation
Ultrasonic pulses are emitted from the transducer, and the time required for the echo to reflect from the liquid surface and return to the transducer is measured.
