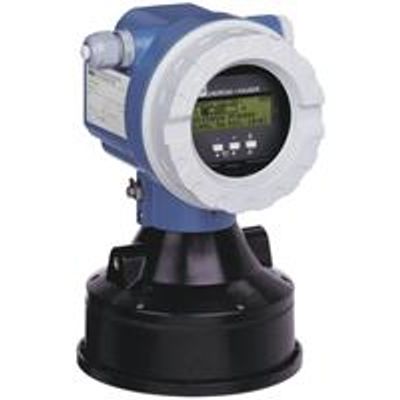

Prosonic - Model FMU43 -Ultrasonic Measurement Time-of-Flight
Cost effective device for sophisticated level measurement in liquids and bulk solids for up to 15m. The Prosonic FMU43 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
-
Reliable non-contact measurement
-
Quick and simple commissioning via menu-guided on-site operation with four-line plain text display, 7 languages selectable
-
Envelope curves on the on-site display for simple diagnosis
-
Hermetically sealed and potted sensor
-
Chemically resistant sensor out of PVDF
-
Calibration without filling or discharging
-
Integrated temperature sensor for automatic correction of the temperature dependent sound velocity
Two-wire or four wire instrument for continuous non-contact level and flow measurement.
-
Process connection: Flange
-
Temperature: -40 to +80°C (-40 to +176°F)
-
Pressure: +0.7 to +2.5bar (+10 to +36psi)
-
Maximum measuring distance: Liquids 15m (50ft), Solids 7m (23ft)
-
Blocking distance: Liquids and Solids 0.6m (2ft)
-
International explosion protection certificates
-
Measuring principle
Ultrasonic
-
Characteristic / Application
Compact ultrasonic transmitter
-
Supply / Communication
4-wire (HART), PROFIBUS PA, FOUNDATION Fieldbus
-
Accuracy
+/- 4 mm or +/- 0.2 %of set measuring range
-
Ambient temperature
-40 °C ... 80 °C
(-40 °F ... 176 °F) -
Process temperature
-40 °C ... 80 °C
(-40 °F ... 176 °F) -
Process pressure absolute / max. overpressure limit
0.7 bar ... 2.5 bar abs
(10 psi ... 36 psi) -
Main wetted parts
Unsaturated Polyester, 316 Ti
-
Process connection
DN 100, ASME 4"
-
Blocking distance
0.6 m (2 ft)
-
Application
-
Max. measurement distance
15 m (50 ft)
-
Communication
4 ... 20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus -
Certificates / Approvals
ATEX, FM, CSA, NEPSI
-
Application limits
Foam / high turbulence possible:
FMU44/FDU92
Foam / high turbulence possible:
FMU44/FDU92
Fast filling and discharging rate:
FMU90 + FDU9x
Level limit detection
FMU90 + FDU9x
-
Measuring principle
Ultrasonic
-
Characteristic / Application
Compact ultrasonic transmitter
-
Supply / Communication
4-wire (HART), PROFIBUS PA, FOUNDATION Fieldbus
-
Accuracy
+/- 4 mm or +/- 0.2 %of set measuring range 1)
-
Ambient temperature
-40 °C ... 80 °C
(-40 °F ... 176 °F) -
Process temperature
-40 °C ... 80 °C
(-40 °F ... 176 °F) -
Process pressure absolute / max. overpressure limit
0.7 bar ... 2.5 bar abs
(10 psi ... 36 psi) -
Main wetted parts
unsaturated polyester, 316 Ti
-
Process connection
DN 100, ASME 4"
-
Blocking distance
0.6 m (2 ft)
-
Max. measurement distance
7 m (23 ft)
-
Communication
4 ... 20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus -
Certificates / Approvals
ATEX, FM, CSA, NEPSI
-
Application limits
Take notice of range diagram
