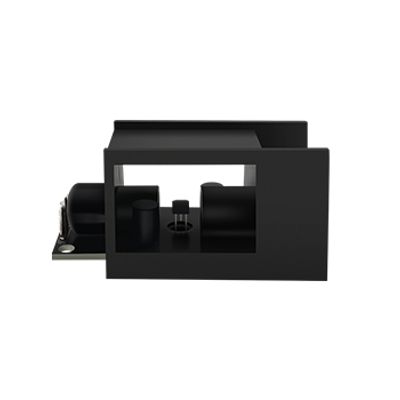

Cubic - Model Gasboard-8500D Series -Ultrasonic Oxygen Sensor Factory Calibration, Maintenance Free
Gasboard 8500D ultrasonic oxygen sensor is an economical gas sensor used to detect oxygen concentration in binary gases. By adopting ultrasonic detecting technology, it is very stable and there is no need to calibrate the sensor in the application. It is mainly designed for ventilator oxygen concentration measurement with high flow range up to 80L and for the large PSA generator too.Compared with electro-chemical oxygen sensors, it has a much longer lifespan and a more stable performance.
- Cutting-edge ultrasonic technology adopted
- High accuracy, high stability, low cost, small size
- Full scale temperature compensation
- Factory calibration, maintenance free
- Long lifespan
- High flow range supportive
- Measurement range O2: 0~100%(withstand flow range: 0~80L)
- Resolution: 0.1%
- Concentration accuracy: ±3%FS @ (5-45)℃
- Response time: ＜10s
- Working temperature: 5℃~50℃; 0-95%RH (non-condensing)
- Storage temperature: -20℃~60℃; 0~95%RH below ( non-condensing)
- Power supply: DC 4.75-12.6V
- Signal output: UART-TTL (3.3V)
- Dimensions: L60.7*W26*H30(mm)
High Flow Oxygen Therapy Instrument
Medical ventilator is a devicewhich could replace,control and change human normal breathing and Improve respiratory function.
Ventilator
The global Covid-19 continues to spread, which makes ventilator an urgent need ranking after masks and toilet paper.
Anesthesia Machine
Clinical anesthetic machine is through mechanical circuit to deliver anesthetic to patient`s alveolus, form anesthetic gas partial pressure, diffuse to blood, produce inhibition to central nervous.
