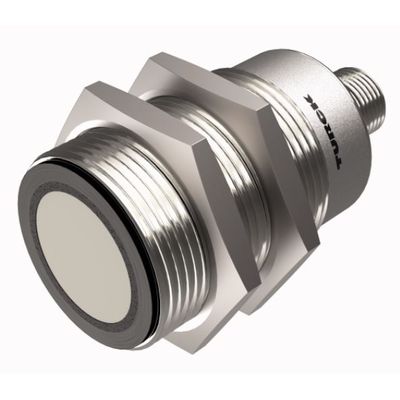

Turck - Model RU300D-M30M-UPN8X2-H1141 -Ultrasonic Sensor - Diffuse Mode Sensor
FromTurck Inc.
Ident. no.: 100039012. Smooth sonic transducer face. M30 cylindrical design, potted. Connection via M12 × 1 male connector. Measuring range adjustable via teach-in. Temperature compensation. Blind zone: 30 cm. Range: 300 cm. Resolution: 1 mm. Adjustable switching hysteresis. Aperture angle of sonic cone: ± 5 °. Switching output, push-pull (PNP/NPN). NO/NC programmable. IO-Link.
Most popular related searches
General data
- EAN: 4047101596458
- eCl@ss-Code (V5.1.4):: 27272803 -/- Ultrasonic proximity switch
- Customs tariff number: 85365019900
- Country of origin: DE
- Weight: 116 g
Technical Data
- Function: Proximity
- Operating mode: Time of Flight
- Design: Threaded barrel
- Construction size: M30 x 1.5
- Radiation direction: straight
- Range: 300…3000 mm
- Resolution: 1 mm
- Operating voltage: 18…30 VDC
- Switching element function: NO/NC
- Output function: PNP/NPN
- Communication protocol: IO-Link
- Electrical connection: Connector, M12 × 1
- Housing material: Metal, CuZn, Nickel Plated
- Ambient temperature: -25…+70 °C
- Protection class: IP67
- Approvals: CE22, cULus
- Special features: Teach input
