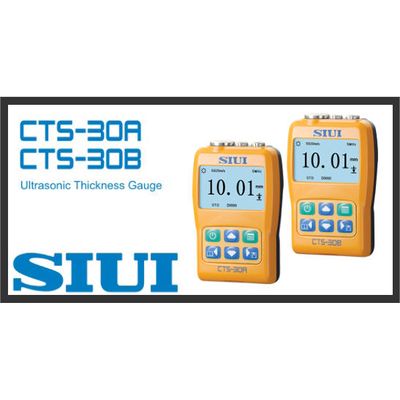

Advanced NDT - Model SIUI CTS-30A & CTS-30B -Ultrasonic Thickness Gauge
The SIUI CTS-30A & CTS-30B is a small, lightweight Ultrasonic Thickness Gauge which offers exceptional value for money. Ideal for basic testing applications. The SIUI CTS-30A / CTS-30B Ultrasonic Thickness Gauge, adopts micro-processor technology and advanced manufacture process design, can do measurement of thickness and acoustic velocity on metal and many materials based on ultrasound measurement principle.
Most popular related searches

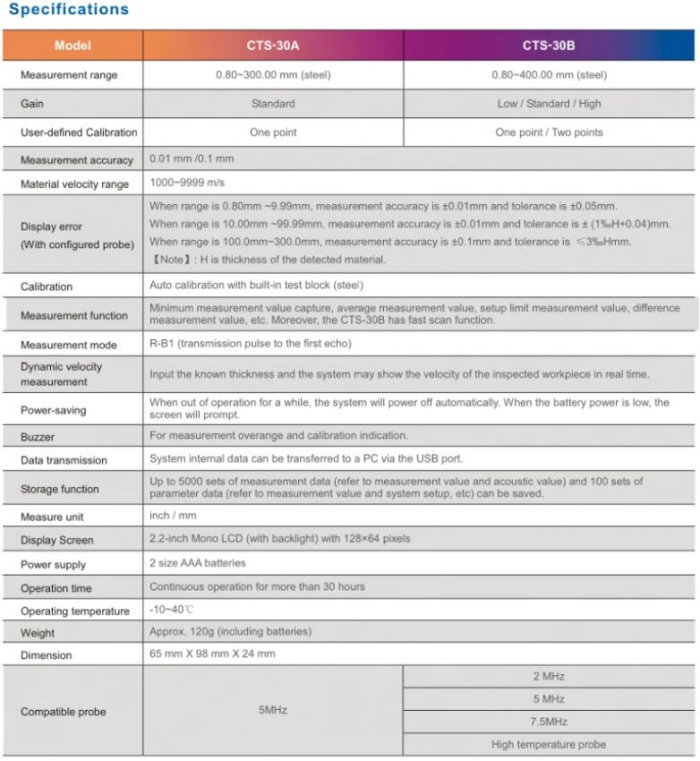

- Mono LCD (with Back light), 128 x 64 pixels
- Measurement Range: 0.8mm-300mm/400mm (steel)
- Measurement Accuracy: 0.01mm/0.1mm
- Various Measurement Modes available: Minimum measurement value capture, average measurement value, set-up limit measurement vale, difference measurement value, etc.
- Input the known thickness and the system may show the velocity of the inspected work-piece in real time.
- Up to 5000 sets of measurement data (refer to measurement value and acoustic value) and 100 sets of parameter data (refer to measurement value and system set-up, etc.) can be saved.
Compact size, lightweight, low consumption and long operation period. Compared with the CTS-30A Thickness meter, the CTS-30B model has more advanced functions, such as:
- Fast Scan
- Two-Point Calibration
- Multi-Probe Selection
