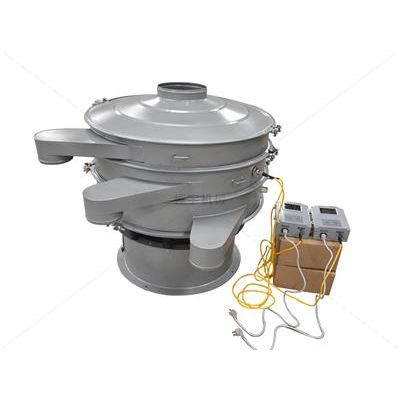

Ultrasonic Vibrating Screen

• Control the narrow particle size range while achieving high precision and high mesh screening.
• It can be used in single layer and multi-layer. One intelligent ultrasonic generator uses three transducers at the same time.
• Complete screen self-cleaning function: more than 500 mesh screening, no mesh plugging, no screening efficiency attenuation.
• Really solve the problem of screening, such as strong adsorption, easy agglomeration, high static, high precision, high density, light specific gravity.
• Ensure that the characteristics of the materials being processed are unchanged.
• No contamination of the powder by auxiliary objects such as bouncing balls;
• The screening accuracy can be increased by 1-70% compared with ordinary vibrating screen, and the output can be increased by 0.5-10 times.　

The ultrasonic vibrating screen converts 220V, 50Hz or 110V, 60Hz electric energy into 36KHz high-frequency electric energy, and inputs it into an ultrasonic transducer to turn it into 36KHz mechanical vibration. The generated ultrasonic wave makes the screen vibrate at high frequency. The material on the screen is superimposed with ultrasonic vibration at the same time as the low-frequency vibration vibration, which can prevent the mesh from being blocked, and can increase the output and quality of the screening machine, so as to achieve the purpose of rapid screening and cleaning, so that the ultrafine powder Screening becomes easy. The system introduces a low-amplitude, high-frequency ultrasonic vibration wave (mechanical wave) on the screen based on a conventional vibrating screen to change the screening performance of the ultrafine powder. Particularly suitable for users of high value-added fine powders.

Advantages of bonding grid: excellent cleanliness; no dead angle in the whole grid, the screen is directly bonded to the grid, and the screen head and corners are not retained.

Advantages of ultrasonic cleaning device: generally used for 200-400 mesh screen; high efficiency and good cleaning effect.

• Ultrasonic control power
• supply: 220V 50Hz
• working frequency: 36KHz
• working mode: continuous pulse
• ambient temperature: 0～45°C
• Dimensions: 300*390*200
• Intensity adjustment: 50～100%

Ultrasonic transducer

• sealed structure prevents the entry of fine powder and liquid.

• Control the narrow particle size range while achieving high precision and high mesh screening.
• It can be used in single layer and multi-layer. One intelligent ultrasonic generator uses three transducers at the same time.
• Complete screen self-cleaning function: more than 500 mesh screening, no mesh plugging, no screening efficiency attenuation.
• Really solve the problem of screening, such as strong adsorption, easy agglomeration, high static, high precision, high density, light specific gravity.
• Ensure that the characteristics of the materials being processed are unchanged.
• No contamination of the powder by auxiliary objects such as bouncing balls;
• The screening accuracy can be increased by 1-70% compared with ordinary vibrating screen, and the output can be increased by 0.5-10 times.
