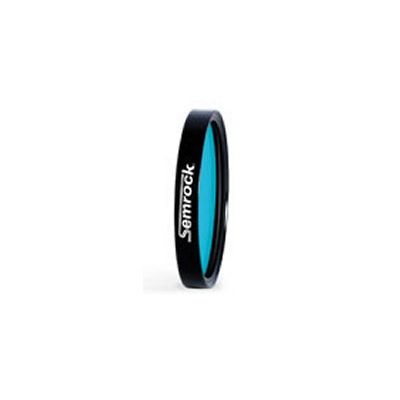

RazorEdge - Model 248 nm -Ultrasteep Long-Pass Edge Filter
RazorEdge filters allow you to see the weakest signals closer to the laser line, especially for Raman spectroscopy applications. With their deep laser-line blocking, ultrawide and low-ripple passbands, hard-coated reliability, and high laser damage threshold, they offer lasting performance and value.
Most popular related searches
- Specification : Value
- Transmission Band 1 : Tavg > 90% 261 – 560.8 nm
- Edge Wavelength 1 : 251.1 nm
- Blocking Band 1 : ODabs > 6 248.6 nm
- Blocking Band 2 : ODavg > 6 202 – 248.6 nm (typical)
- Transition Width (nm) : 5 nm
- Transition Width (cm-1) : 805 cm-1
- Edge Steepness (%) : 0.8%
- Edge Steepness (nm) : 2.0 nm
- Edge Steepness (cm-1) : 319.2 cm-1
- Specification : Value
- Laser Wavelength 1 : 248.6 nm
- Angle of Incidence : 0 ± 2 degrees
- Cone Half-angle : 5 degrees
- Optical Damage Rating : 0.5 J/cm2 @ 266 nm (10 ns pulse width), 1 J/cm2 @ 532 nm (10 ns pulse width)
- Effective Index : 2.24
- Specification : Value
- Transverse Dimensions (Diameter) : 25 mm
- Transverse Tolerance (mounted) : + 0.0 / – 0.1 mm
- Filter Thickness (Mounted) : 3.5 mm
- Filter Thickness Tolerance (Mounted) : ± 0.1 mm
- Clear Aperture : ≥ 22 mm
- Scratch-Dig : 60-40
- Substrate Type : Fused Silica
- Substrate Thickness (unmounted) : 2.0 mm
- Substrate Thickness Tolerance (unmounted) : ± 0.1 mm
- Orientation : Arrow on ring indicates preferred direction of propagation of light
