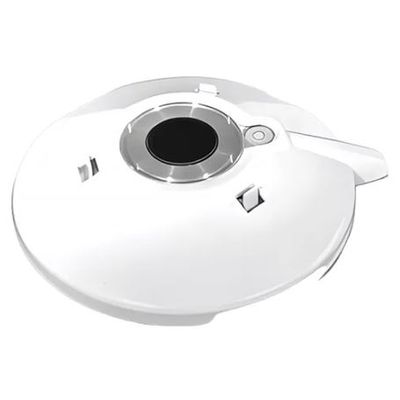

BGT Hydromet - Ultraviolet Radiation Sensor
The ultraviolet radiation sensor is a high-performance environmental monitoring device used for measuring and recording the ultraviolet radiation intensity within the range of 280-400nm in the environment. The product features high precision, rapid response and strong stability, which can accurately capture and reflect the changes in ultraviolet radiation. Whether in meteorological observation, environmental monitoring, skin health research or safety assessment of outdoor workplaces, ultraviolet radiation meters play a crucial role.
The Ultraviolet Radiometer is a precision instrument designed to measure solar ultraviolet radiation (UVAB/UVA/UVB wavelengths) in the atmosphere. It provides critical data for calculating UV index, erythema (sunburn) dosage, and assessing UV impacts on human health, biological systems, and chemical processes. Compliant with WMO (World Meteorological Organization) standards, it delivers reliable measurements for environmental, industrial, and scientific applications. With passive sensing technology and robust design, it operates effectively in harsh conditions without external power (for analog version), while the RS485 version supports digital integration.
- Spectral Range: UVAB: 280-400nm; UVA: 315-400nm; UVB: 280-315nm
- Signal Range: UVAB/UVA: 0-300 W/m²; UVB: 0-10 W/m²
- Output Signal: 0-20mV (passive); RS485 (9-36V powered)
- Sensitivity: 10-500 μV/W·m²
- Response Time: ≤10 seconds (99%)
- Nonlinearity: ≤±2%
- Annual Stability: ≤±2%
- Operating Temperature: -50°C to +100°C
- Operating Humidity: 0-100% RH
- Weight: 0.8 kg
