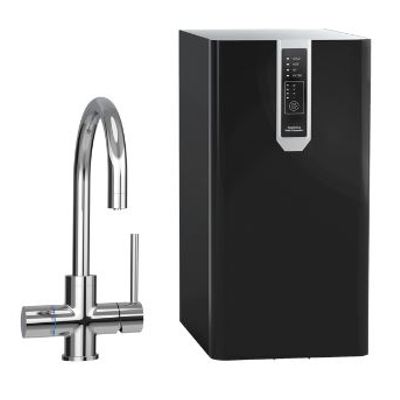

Charm - Model M106U -Under Counter Water Dispenser
Designed to locate near the outlet with instant start system to make sure water is fully sterilized before dispense. Replaceable high efficiency UV light eliminates 99.9% of germs without increasing water temperature or affecting the taste of cold and sparkling water due to heat generated from continuously on UV light.
Delivers Hottest Water
Hot water tank to deliver 95oC hot water after each reheating.
The setting button on the panel is for changing the maximum heating temperature of hot water according to the altitude of the location to prevent over-boiling.
- H: Maximum temperature (98o/96o celsius)
- M: -2 degree from maximum temperature
- L: -5 degree from maximum temperature
Quick power off button: shuts off the faucet function to prevent water from flowing while cleaning
Replaceable Internal CO2 Cylinder
- Create a neat and tidy counter surface with no external CO2 connection
- Liftable (30º) connector makes cylinder change quick and easy
- Compatible to the TR21-4(thread), 425g (60L) CO2 cylinder.
Rotational Replaceable Filter
Replaceable UF(Ultra-filtration) filter installed to the liftable (30o) connector, makes filter change done in less than 10 seconds
Ultra-filtration (UF): Hollow Fiber Technology uses ultra filtration, a membrane filtration process which pushes water through the semi-permeable membrane by standard home water pressure, to block away impurities and bacteria but leave minerals in water.
Space saver
Both filter and CO2 cylinder are placed inside of the water dispenser, save the external space.
All additional parts are combined.
- Model: M106U
- Size: 23(W) x 35(D) x 45(H) cm
- Color: White/Silver, Black/Silver
- Water options: Cold/Hot/Sparkling, Cold/Ambient/Sparkling
- Chilling capacity: up to 20 liters per hour
- Heating capacity: up to 12 liters per hour
- Sparkling tank capacity: 3.5 liter
- Voltage: AC 110v / 220v
- Power consumption: Hot water 1000w / Cold water 100w
- Maximum inlet water pressure: 80 psi
- Water/CO2 inlet pipe size: 1/4 inch (6.35 mm)
