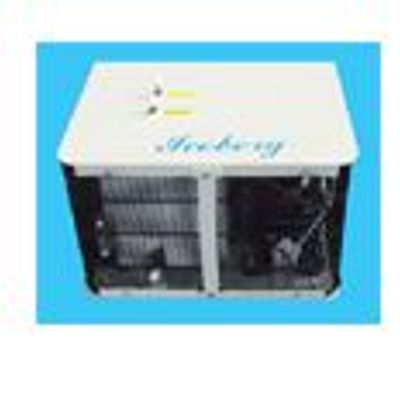

Aqua-Euro - Under Sink Chiller Unit

Performance:
Cold water outlet temperature 7?C±2?C
Cooling capacity 4.5L/hour (operating temperature will be reached in approximately 25 minutes, based at 21.2?C room temperature)

Power consumption:
Maximum 75 watts usage

Cold Tank Material:
Stainless Steel 304

Cooler Casing:
Powder-coated painted 18SWG cold rolled steel

Thermostat:
Preset at factory

Compressor:
Type:
Hermetically sealed, PTC starter with overload protector.

Refrigerant Type:
R134a (Ozone friendly)
Refrigerant charge:
35g

Characteristics:
Capacity - 200 BTU/hr (55 watts)
220V/50 Hz./1Ph
Locked Rotor Amps (LRA) = 5.1A

Dimensions & Freight Data
Product Dimensions:

• 300mm deep x 410mm wide x 300mm high
• Product Weight:
• 13.3 kg.
• Product Boxed Dims:
• 330mm deep x 440mm wide x 340mm high
• Product Boxed Weight:
• 14.6 kg

• Sealed ABS plastic cylindrical body.
• Silver impregnated activated carbon media.
• Push-fit inlet/outlet connectors.
• Internal Vion F 10 micron filtration screens.
• Advanced multi-stage filtration system.
• Maximum working pressure 10bar (140 PSI).
• WRAS approved.
• Conforms to BS6920
• Designed to be changed annually
• Water Filter
• Dimensions 250 x 120 mm.
• Warranty 1 year.
• 1 year replacement filter £65.00
