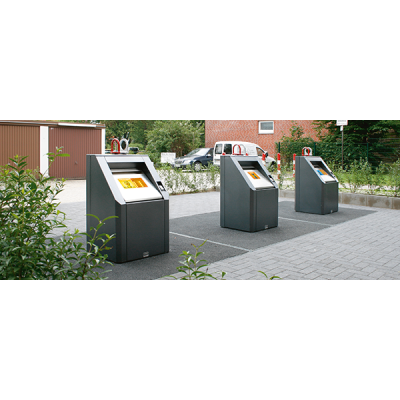

GeoTainer - Model GTU -Underground System
It may not be a long way from the flat to the bins in the housing complex but it is often an arduous one. Putting out the rubbish on a regular basis can prove extremely difficult for senior citizens and the handicapped. In addition the conventional collection of household waste and recycling materials i.e. paper and light packaging also has several unpleasant side-effects: collection points take up a lot of space and are often an eyesore; unpleasant smells and vermin can cause problems; the bins are accessible to anyone and everyone; frequent emptying is costly and time-consuming.
Our Underground Systems – a great solution – clean, barrier-free and cost-effective.
High demands are made of municipal collection systems for glass and paper.
These systems must be economical because of the large quantities involved but there are also other important aspects such as appearance, cleanliness on location and environmental friendliness that need consideration.
Our Underground Systems meet these requirements and guarantee a clear view for all road-users.
The expansion of the EU has led to an increase in the volume of motorway traffic and to the number of visitors frequenting motorway facilities i.e. parking and rest areas. Consequently high demands are made of the collection systems for litter disposed of by travellers on the motorway.
Our Underground System Model GTU - a great solution - clean and efficient.
Please refer to page 18 for information on an interesting alternative to the Model GTU - our Semi-Underground System Model GTE.
Large quantities of rubbish accumulate in parks and other recreation areas, particularly at the weekend. Our Underground System Model GTU is especially designed to accommodate a high volume and at the same time improve the appearance of the location.
Furthermore a high volume means less frequent emptying and that makes it easier to schedule routes.

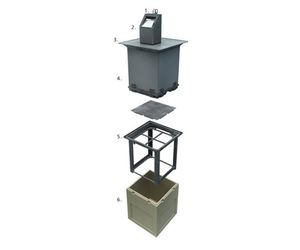

Construction- Pick-up system for truck crane
- Throw-in column
- Pavement plateau
- Stud plate or rubber covering
- Collecting container
- Collecting container made of sturdy steel, sheet construction, screwed together
- 1, 2 or 3 chambers
- Basin-like trap doors retain any remaining liquid
- Glass: trap doors held and operated by high-strength chains, insulated against noise and connected to pick-up system
- Paper/household refuse: trap doors held and operated by traverse / leverage system which is connected to pick-up system
- Safety plateau
- Locked securely in place
- Load capacity 200 kg
- Concrete outer
- Reinforced, cast in one piece, watertight
- Pump sump
- Optional extra: buoyancy safeguard
- Anchor straps on the side to facilitate transport; can also be fitted on top (optional extra)
In addition to the standard columns available for various commodities i.e. glass, paper and household waste we also manufacture custom designed units.
Columns can be made of stainless steel and either polished or powder coated; galvanized steel sheet can also be powder coated.
