GeoTainer - Model GTS -Underground System

SHARE

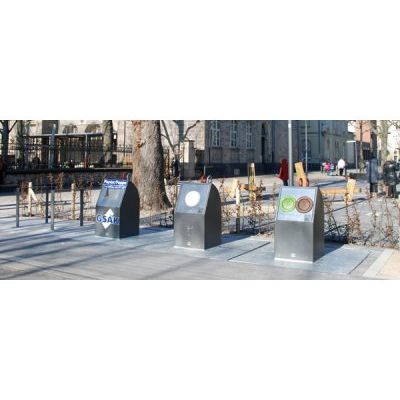

The Model GTS is similar to the Model GTU but requires even less space yet still has a high collection volume. Only one car parking space is needed to install a triple collection point (clear glass, amber/green glass, paper). Thanks to the special design of the safety platform this collection point can accommodate a high volume.
Most popular related searches
surface water
safety system
drain water
sump pump
noise insulation

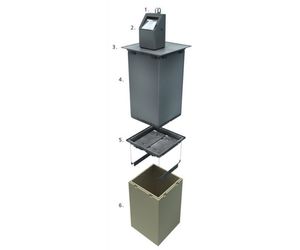

  1. Pick-up system for truck crane
  2. Throw-in column
  3. Pavement plateau
    1. Stud plate or rubber covering
  4. Collecting container
    1. Collecting container made of sturdy steel, sheet construction, screwed together
    2. 1 or 2
    3. Basin-like trap doors retain any remaining liquid
    4. Glass: trap doors held and operated by high-strength chains, insulated against noise and connected to pick-up system
    5. Paper/household refuse: trap doors held and operated by traverse / leverage system which is connected to pick-up system
  5. Safety plateau
    1. Locked securely in place
    2. Load capacity 150 kg
  6. Concrete outer
    1. Reinforced, cast in one piece, watertight
    2. Pump sump
    3. Integrated drain for surface water
    4. Optional extra: buoyancy safeguard
    5. Anchor straps on the side to facilitate transport; can also be fitted on top (optional extra)
