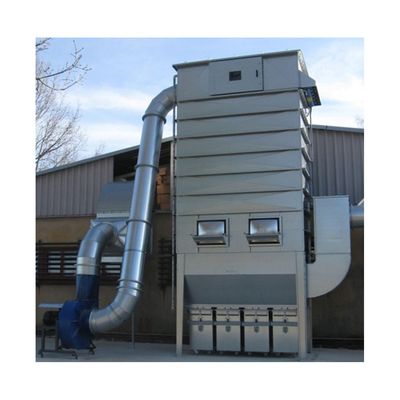

ACword - Model FJ -Underpressure Filtration Unit
Filtration units are used for separation of waste material from woodworking technology. Steel galvanized structure is equipped by filter hoses from high quality polyester material. Separated waste material falls down into steel containers. Modular design allows multiply capacity. Each module has own vibration motor for filter regeneration. According to ventilator and filter unit arrangement we can divide filtration units to:ystem can be adapted to each individual field of application.
Filtration unit – underpressure
At underpressure arrangement is filter unit ordered prior to ventilator. Ventilator is working in clean air. Vibration filter regeneration is done by stopped ventilator. In addition we can install filter regeneration by pressed air blow. That regeneration can be done during ventilator work and significantly increase filtration efficiency and filter hose live.
Basic equipment of FJ module
- 60 or 78 filtration hoses with diameter of 160 mm and length of 1500, 2000, 2500, and 3000 mm
- vibration motor for filter regeneration
- optionally in addition system of pressure air blow
- inlet chamber for air speed decrease and herewith increase of filtration efficiency
- steel containers for waste collecting
- inspection door
- dry fire extinguishing system
- safety flap for explosion release
Filtration units FJ can be installed outside the building and filtered air can be returned back into working area.
Advantages
- in comparison to overpressure arrangement is underpressurre system more suitable for extraction of materials, those cause higher filter load and higher risk of explosion – e.g. fine dust developed by sanding
- filter regeneration by pressure air blow increase filtration exfficiency and filter hoses live
- ventilator ordering after filtration unit allows to choose ventilator with higher efficiency impeller and herewith safe installed power of ventilator
