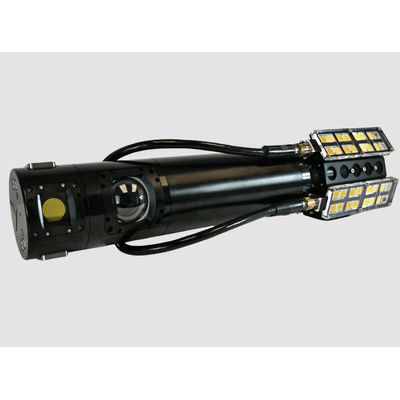

Model Insight Micro -Underwater Laser Scanner

SHARE

A dynamic laser scanner, with an optional integrated stills camera, made for integration into small vehicles. For Small Vehicles: The Insight Micro is a compact dynamic laser scanner designed for use on smaller subsea vehicles. Low Power Draw: Small and power-efficient electronics enable long-duration laser scanning missions using less than 50 watts. Simplified Integration: Onboard storage, API, and cable-free design allows for simplified integration into subsea vehicles. Capture high-resolution 3D data and crisp stills images simultaneously with this low-power draw dynamic laser scanner.

Most popular related searches
  • 1000m or 4000m depth rating
  • Dynamic scanning with vehicle navigation integration
  • 3D point clouds are rendered in real-time
  • Optional integrated imaging system
  • 0.7m - 5.0m (SR) | 1.0m - 7.0m (XR) scan range
3D Point Cloud Data

Insight laser scanners generate accurate 3D point cloud models of your subject – allowing you to gather precise measurements or create a baseline for future comparative scans.

Qualitative & Quantitative Data

The optional stills camera can be seamlessly integrated to provide a complete optical assessment of the target with both qualitative and quantitative datasets.

Scan Range: 0.7m - 5.0m (SR) | 1.0m - 7.0m (XR)

Profile Rate: 50 Hz Laser with 3Hz Stills Imaging

100 Hz (Laser Only) with Range Limiting

Points Per Line: 2464

laser-safety-warning: WARNING - LASER RADIATION

AVOID EXPOSURE TO BEAM

Class 3B Laser Product

448nm, <75mW, 1mSec to CW | EN/IEC 60825-1 2014

Data Format: Laser: .XYZ (CVS), LAS Publishing | Stills: .JPG, .TIFF

Depth Rating: 1000m or 4000m

Data Acquisition: Real-time processing | ViewLS, C++ API (included)
