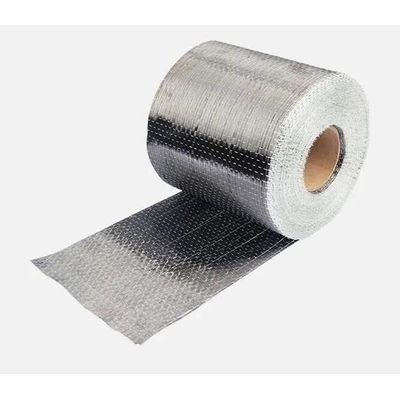

Horse - Model HM-20 -Unidirectional Carbon Fiber Wrap
Leading manufacturer of unidirectional carbon fiber wrap for concrete repair and structural strengthening. Horse Construction`s carbon fiber reinforced polymer wrap(CFRP composite strengthening system) for structural strengthening, repairing and retrofitting of concrete, masonry, steel and wooden substrates. FRP composite strengthening of columns, beams, slabs, walls, piles, pier caps in building, bridge, highway, railway, tunnels, piers and civil airport.
- Easy installation
- Corrosion resistance
- Short construction period
- No maintenance required
- Light weight, no influence to original structure
- Low cost, cost effective compared with other methods
- Easy installation
- Corrosion resistance
- Short construction period
- No maintenance required
- Light weight, no influence to original structure
- Low cost, cost effective compared with other methods
Unidirectional Carbon Fiber Wrap Manufacturer
- The largest and most professional carbon fiber wrap manufacturer in China
- 5 carbon fiber wrap production lines, 10,000 square meters per day
- The daily storage of carbon fiber is 100,000 square meters, and the daily storage of adhesive is 50 tons
- The factory covers an area of 5,000 square meters
- Equipped with an independent laboratory and 3 technologies to test data at any time
Application Range of Carbon Fiber Strengthening
- Load increases
- Seismic reinforcement
- Improve structural state
- Damage of structural parts
- Change the structural function
- Remit mistakes in design and construction
Base Substrates of Carbon Fiber Structural Strengthening
- Concrete substrate
- Steel substrate
- Masonry substrate
- Timber substrate
Structural Elements of Carbon Fiber Strengthening
- Columns strengthening
- Beams strengthening
- Slabs strengthening
- Walls strengthening
- Pipes strengthening
- Pier caps strengthening
Construction Field of Carbon Fiber Structural Strengthening
- Civil buildings
- Bridges
- Tunnels
- Piers/wharfs
- Airports
- Highways, railways
Best Matched Epoxy System for Structural Strengthening
- HM-180 Primer, for smearing of the underlayer of reinforced member`s surface
- HM-180CE Leveling adhesive, for repairing and leveling of reinforced substrate surface defects
- HM-180C3P Impregnated adhesive, for impregnation and pasting of reinforced component surface and Horse unidirectional
How to Use Carbon Wrap For Structural Strengthening
- Surface treatment
- Applying HM-180 primer
- Repairing and leveling with HM-180CE leveling adhesive
- Applying HM-180C3P carbon fiber adhesive
- Externally bonded Horse unidirectional carbon fiber wrap
- Applying HM-180C3P carbon fiber adhesive again
- Curing and protectin
- Flexible
- High strength
- High modulus
- Easy to install
- Long shelf life
- Light self weight
- High toughness
- Anti high temperature
- Environmental-friendly
- Unidirectional carbon fiber wrap used for shear strengthening, confinement strengthening, flexural strengthening
